RG Flex® Telecom Power Cable

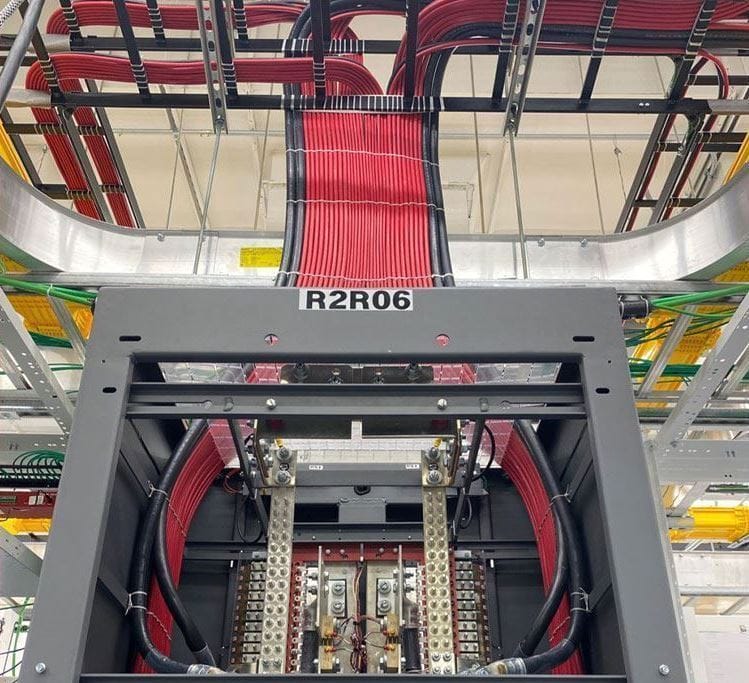

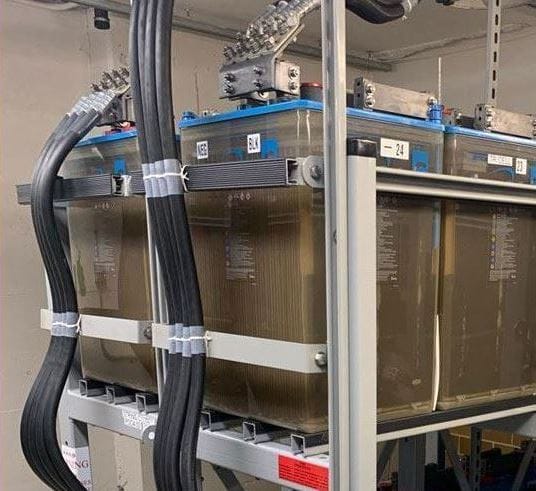

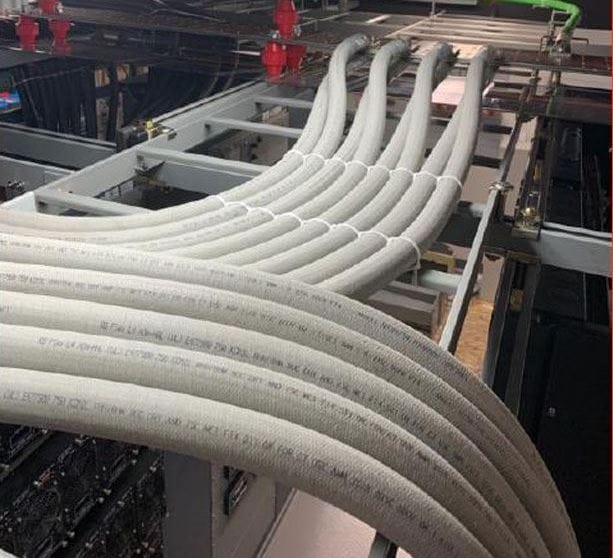

Cablcon (formerly Jupiter Communications) exclusively offers RG Flex® cables, a family of DC Power Cables that have been tested and certified by Telcordia and meet the functional performance requirements of GR-347 Issue 3, TPR.9212 and ATIS-0600017.2020. These cables are Telcordia-certified meaning that the L2, L3, and L4 power cables are suitable for use in all telecommunications applications including central offices, remote terminal applications, data center and outside plant remote cabinets that house electronics equipment. RG Flex cables offer custom solutions tailored to meet unique power requirements, ensuring optimal performance in diverse applications.

Telecom Power Cable

IEWC knows that in order for the telecom infrastructure to remain sound, engineers and procurement specialists must source high quality materials that meet all the necessary industry specifications and also ensure a specifications entire list of components is available for technicians. IEWC exclusively offers RG Flex® telecom DC Power cables. Paired up with Burndy connectors and installed with Burndy tooling, you have an engineered system and proven winning connection.

RG Flex® L2 Telecom Power Cable

RG Flex® L3 Telecom Power Cable

RG Flex® L4 Telecom Power Cable

Distinguishing L2, L3, and L4 Cables

RG Flex L2, L3, and L4 cables are built for different DC power needs, from standard use to high-flex, rugged environments. Learn what sets each series apart below and download our DC Power Solutions Guide to find the best fit for your application.

L2 Telecom Cables:

Flexible Class I Strand
No Braid
Nonflammable Smooth Coated Jacket
Ideal for use in industrial, commercial, or transportation environments
Flame Performance: VW-1/FT4-ST1

L3 Telecom Cables:

Non-Flexible Class B Strand
Braided
Ideal for use in telecommunications facilities
Flame Performance: VW-1/FT4

L4 Telecom Cables:

Flexible Class I Strand
Braided
Ideal for use in telecommunications facilities
Flame Performance: VW-1/FT4-ST1

RG Flex L2 DC Power Cable - Available Cable Constructions

Size AWG or kcmil	Stranding Number/dia (inch)	Conductor Diameter (inches)	Insulation min. Thickness (mils)	Nominal insulation Diameter (inches)	Max.D.C.Res. @ 20°C (ohms/ mft.)	Approx. Weight lbs./mft.
18	7/0.0157	0.0472	30	0.106	7.163	11
16	7/0.0197	0.059	30	0.118	4.481	15
14	41/0.0100	0.074	45	0.181	2.728	25.4
12	65/0.0100	0.093	45	0.197	1.719	34.8
10	105/0.0100	0.12	45	0.228	1.079	50
8	41/0.0201	0.147	60	0.28	0.68	77.8
6	65/0.0201	0.192	60	0.319	0.436	112.6
4	105/0.0201	0.257	60	0.394	0.274	169.4
2	165/0.0201	0.309	60	0.445	0.172	248.5
1	210/0.0201	0.346	80	0.52	0.137	327
1/0	266/0.0201	0.398	80	0.575	0.109	405.2
2/0	342/0.0201	0.455	80	0.63	0.087	516.5
4/0	532/0.0201	0.571	80	0.748	0.055	754.9
350	882/0.0201	0.752	95	0.965	0.034	1194.1
500	1221/0.0201	0.894	95	1.102	0.023	1606.5
750	1850/0.0201	1.067	110	1.323	0.016	2414.4

View spec sheet as a PDF

RG Flex L3 DC Power Cable - Available Cable Constructions

Size AWG or kcmil	Stranding Number/dia (inch)	Conductor Diameter (inches)	Insulation min. Thickness (mils)	Nominal insulation Diameter (inches)	Nominal Braid Diameter (inches)	Max.D.C.Res. @ 20°C (ohms/ mft.)	Approx. Weight lbs./mft.
14	7/0.0240	0.071	45	0.173	0.24	2.731	33.6
12	7/0.0303	0.09	45	0.193	0.256	1.719	48.6
10	7/0.0386	0.113	45	0.217	0.279	1.079	64.1
8	7/0.0484	0.143	60	0.276	0.338	0.677	97.1
6	7/0.0610	0.181	60	0.311	0.378	0.427	127.6
4	7/0.0772	0.228	60	0.358	0.425	0.268	189.8
2	7/0.0972	0.286	60	0.417	0.484	0.169	272.6
1	19/0.0654	0.327	80	0.488	0.57	0.134	355
1/0	19/0.0744	0.366	80	0.539	0.61	0.106	432
2/0	19/0.0839	0.417	80	0.587	0.661	0.084	534.4
4/0	19/0.1055	0.524	80	0.693	0.771	0.052	794.4
350	37/0.0972	0.665	95	0.87	0.941	0.032	1258
500	37/0.1142	0.803	95	1.008	1.078	0.021	1769.8
750	61/0.1110	0.976	110	1.213	1.283	0.015	2574.6

View spec sheet as a PDF

RG Flex L4 DC Power Cable - Available Cable Constructions

Size AWG or kcmil	Stranding Number/dia (inch)	Conductor diameter (inches)	Insulation min. Thickness (mils)	Nominal insulation Diameter (inches)	Nominal Braid Diameter (inches)	Max.d.c.res. @ 20°C (ohms/ mft.)	Approx. Weight lbs./mft.
8	41/0.0201	0.147	60	0.28	0.342	0.68	98.1
6	65/0.0201	0.192	60	0.315	0.381	0.436	135.3
4	105/0.0201	0.257	60	0.39	0.452	0.274	195.5
2	165/0.0201	0.309	60	0.441	0.508	0.172	278.5
1	210/0.0201	0.346	80	0.512	0.59	0.137	361
1/0	266/0.0201	0.398	80	0.571	0.641	0.109	442.8
2/0	342/0.0201	0.455	80	0.626	0.7	0.087	548.1
4/0	532/0.0201	0.571	80	0.736	0.814	0.055	804.1
350	882/0.0201	0.752	95	0.953	1.027	0.034	1254.9
500	1221/0.0201	0.894	95	1.087	1.157	0.023	1676
750	1850/0.0201	1.067	110	1.307	1.382	0.016	2499.6
