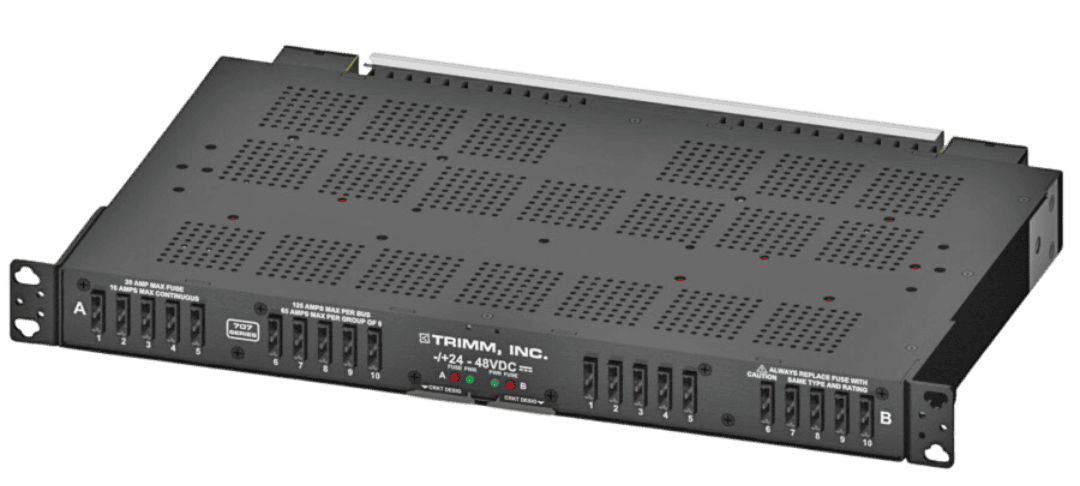

GMT FUSE PANEL 20A -/+24 TO 48V DC
-
10/10 GMT panel
-
125A per bus
-
20A GMT positions
-
Ambient rating up to +65° C, making them suitable for outside plant cabinets
-
Made in the USA
| GENERAL | |
|---|---|
|
Dimensions: | 19.00" W x 1.75" H x 11.250" D |
| Rack Space: | 1U |
| Weight: | 5.5 lbs. |
| Mounting: | Universal 19" or 23", WECO or EIA |
| Mtg. Pos.: | Flush, 4" or 5" Offset |
| Finish: | Black Textured Powder Coat |
| ELECTRICAL | ||
|---|---|---|
| Input: | Nominal Voltage: | -/+24-48V DC |
| Voltage Range: | -/+19-60V DC | |
| Number of Buses: | 2 | |
| Intr. Device Rating: | 150 Amps | |
| Output: | Max Fuse Rating: | 20 Amp |
| Continuous Load Rating: | 16 Amps | |
| ALARMING | |
|---|---|
| Indicators: | Green (Power)/ Red (Alarm) |
| Function: | Form C relay contacts for remote fuse and power fail indication |
| Conn. Type: | Solderless Wire Wrap (18 to 30 AWG) |
| Rating: | DC 30W/AC 50VA |
| STANDARDS | |
|---|---|
| Safety (Listed): | UL 60950-1/UL 1801/CSA C22.2
No.60950-1/EN 60950-1/IEC 60950-1 |
| Telcordia: | NEBS Level 3 (GR-63/GR-1089) and
GR-3108 Class 3 (w/o salt fog testing) |
| ENVIRONMENT | |
|---|---|
| Short Term Op Temp: | -40° C to +70° C |
| Ambient: | Up to 65° C |
| Store Temp: | -40° C to +70° C |
| Humidity: | 0 to 95% non-condensing |
| Power Dissipation: | 49.25 Watts max |
| CONNECTIONS | ||
|---|---|---|
| Input: | 2 Hole Lug: | 1/4" stud x 5/8" spacing |
| Wire Range: | Up to 2/0 AWG | |
| Max. Terminal Width: | 0.640" | |
| Tightening Torque: | 40 in-lb (4.5 Nm) | |
| Output: | Barrier Strip Output: | #6 Sems Screw for Terminals |
| Wire Range: | 10 to 22 AWG | |
| Max. Terminal Width: | 0.312" | |
| Tightening Torque: | 10 in-lb (1.1 Nm) | |
| Ground Bus: | 2 Hole Lug: | 1/4" stud x 1" spacing |
| Wire Range: | 6 AWG lug supplied with panel | |
