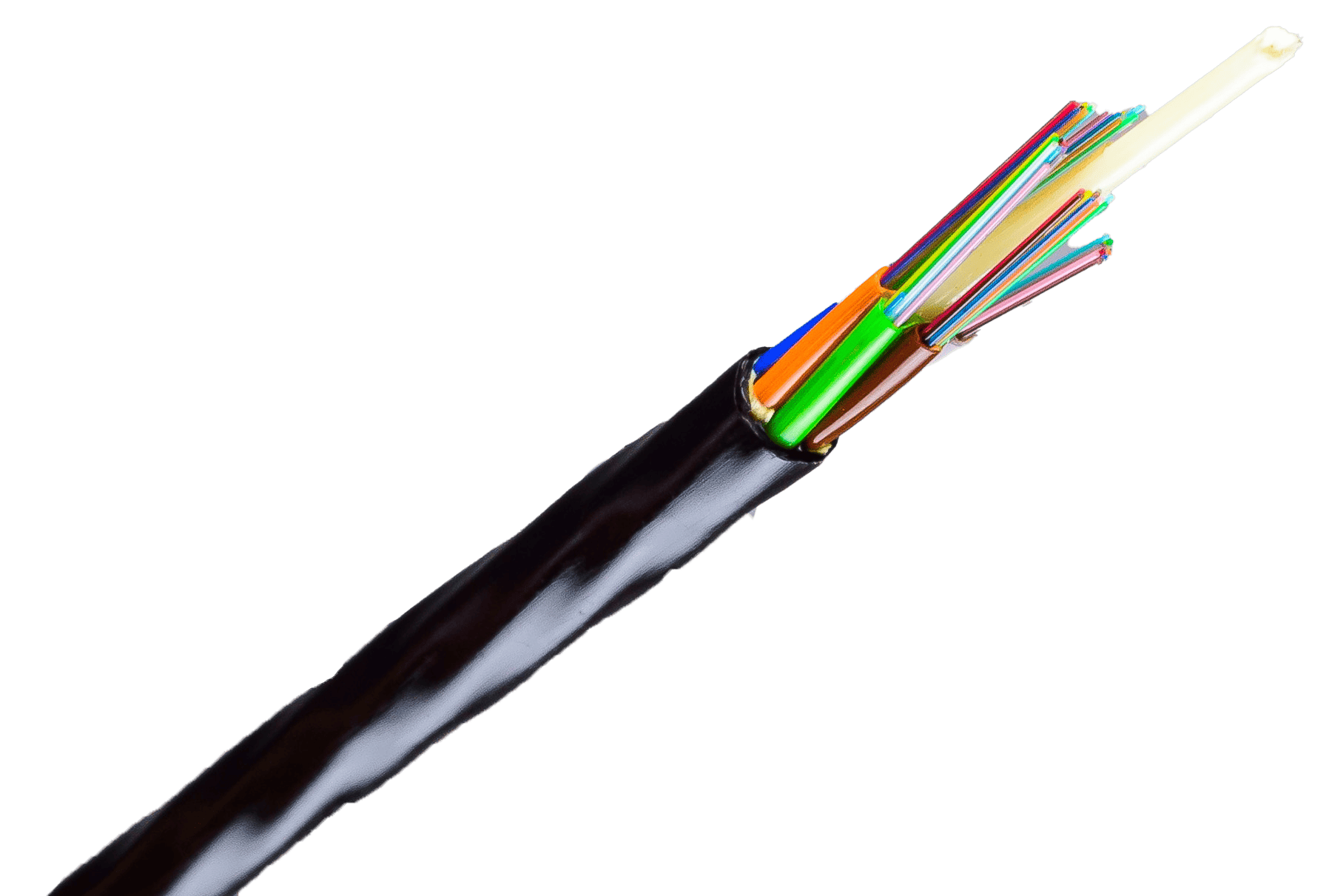

Microcable
Microcable – Loose Tube provides a compact, high-density option for metro, data center, and campus networks, with fiber counts up to 576 and space-saving 200μm/250μm G.657.A1 fibers. Built for harsh environments, these cables offer strong tensile performance and long-term reliability, and Cablcon’s engineers are available to support custom configurations and project needs. View the Microcable Loose Tube Summary here, or request a quote to explore customization, performance requirements, or installation support.
Applications:
- Telecommunication Networks: Designed for deployment in high-capacity fiber optic networks, ensuring robust data transmission for long-haul, metro, and access networks.
- Data Centers and Enterprise Networks: Efficient in high-density data centers and campus network infrastructures where maximizing fiber counts is critical.
- FTTx Deployments: Ideal for Fiber-to-the-Home (FTTH), Fiber-to-the-Premises (FTTP), and other access networks that require compact cable designs for dense deployments.
- Duct and Conduit Installations: For placement in tight ducts and conduits, allowing easy installation in constrained spaces.
- Outdoor Aerial and Buried Installations: Suitable for aerial and direct-buried applications, providing versatility in installation environments.
- Jetted or Blown Deployment: Cost effective method by reducing installation time and labor costs due to efficiency, reduced stress or risk of damage, and flexibility for future updates.
Technical Specifications:
- Fiber Types: 250μm G.657.A1 for 12 fibers/tube configurations and 200μm G.657.A1 for 24 fibers/tube configurations.
- Fiber Count: Available in fiber counts from 12 to 576 fibers, making it ideal for networks requiring large data throughput and scalability. Fiber configurations 12-72 fibers, 96-288 fibers, and 432-576 fibers available.
- Operational Temperature Range: Operational in extreme temperature ranges (-40°C to +70°C), making it suitable for a variety of climates and conditions.
- Tensile Rating: ≥ 1W (where W is the weight of the cable per km)
- Outer Diameter (OD): Ranges from 4.5 mm to 12.5 mm, depending on fiber count and configuration.
- Typical Minimum Duct ID: Varies from 6 mm to 16 mm.
Performance Benefits:
- Performance Standards: ICEA S-122-744, to ensure mechanical and environmental performance.
- Compact Design for Duct Optimization: The small OD allows for the efficient use of limited duct space and easy placement in tight spaces enabling high fiber density in compact infrastructures and easier installations.
- High Tensile Strength: Designed to withstand mechanical stress during installation and service life, ensuring reliability in a range of installation environments.
- Flexible Installation: Lightweight and compact construction ensures easy handling and installation, reducing labor and time costs.
Construction Features:
- Loose Tube Design: Loose tubes house either 12 or 24 fibers per tube, offering enhanced protection and flexibility during installation and long-term use.
- Multi-tube Configuration: Provides options for fiber counts from 12 to 576 fibers, accommodating various network needs.
- Rugged Construction for Versatile Use: Engineered for both aerial and underground installations, ensuring durability across various deployment environments.
1.0 Microcable
| Fiber Count Tube | Fiber Count Cable | Cablcon Standard Part Number | OD (mm) | Typical Minimum Duct ID (mm) |
|---|---|---|---|---|
| 12 | 12-72 | 13-TI0XX-0405 | 5.8 | 8 |
| 12 | 96 | 13-TI096-0405 | 6.6 | 10 |
| 12 | 144 | 13-TI144-0405 | 8.8 | 12 |
| 12 | 216 | 13-TI216-0405 | 9.0 | 12 |
| 12 | 288 | 13-TI288-0405 | 10.3 | 14 |
| 24 | 144 | 13-TI144-0405 | 6.4 | 8 |
| 24 | 192 | 13-TI192-0405 | 7.7 | 10 |
| 24 | 216 | 13-TI216-0405 | 8.3 | 10 |
| 24 | 288 | 13-TI288-0405 | 10.2 | 14 |
| 24 | 432 | 13-TI432-0405 | 10.5 | 14 |
| 24 | 576 | 13-TI576-0405 | 12.5 | 16 |
Fiber type: 250μm G.657.A1, Operating Temp. Range (°C): -40 to +70, Tensile rating ≥ 1W, where W is weight of cable per km, Performance Standard: ICEA S-122-744
1.1 Microcable
| Fiber Count Tube | Fiber Count Cable | Cablcon Standard Part Number | OD (mm) | Typical Minimum Duct ID (mm) |
|---|---|---|---|---|
| 12 | 12-72 | 13-TI0XX-04054 | 5.2 | 8 |
| 12 | 96 | 13-TI096-04054 | 6.1 | 8 |
| 12 | 144 | 13-TI144-04054 | 7.8 | 10 |
| 12 | 216 | 13-TI216-04054 | 8.2 | 10 |
| 12 | 288 | 13-TI288-04054 | 8.9 | 12 |
| 24 | 144 | 13-TI144-04054 | 6.0 | 8 |
| 24 | 192 | 13-TI192-04054 | 7.1 | 10 |
| 24 | 216 | 13-TI216-04054 | 7.4 | 10 |
| 24 | 288 | 13-TI288-04054 | 9.3 | 12 |
| 24 | 432 | 13-TI432-04054 | 9.5 | 14 |
| 24 | 576 | 13-TI576-04054 | 11.2 | 14 |
Fiber type: 250μm G.657.A1 (12 f/t) & 200μm G.657.A1 (24 f/t), Operating Temp. Range (°C): -40 to +70, Tensile rating ≥ 1W, where W is weight of cable per km, Performance Standard: ICEA S-122-744
1.2 Microcable
| Fiber Count Tube | Fiber Count Cable | Cablcon Standard Part Number | OD (mm) | Typical Minimum Duct ID (mm) |
|---|---|---|---|---|
| 12 | 12-72 | 13-TI0XX-04053 | 4.5 | 6 |
| 12 | 96 | 13-TI096-04053 | 5.2 | 8 |
| 12 | 144 | 13-TI144-04053 | 6.8 | 10 |
| 12 | 216 | 13-TI216-04053 | 7.2 | 10 |
| 12 | 288 | 13-TI288-04053 | 8.1 | 12 |
| 24 | 144 | 13-TI144-04053 | 5.5 | 8 |
| 24 | 192 | 13-TI192-04053 | 6.5 | 8 |
| 24 | 216 | 13-TI216-04053 | 7.0 | 10 |
| 24 | 288 | 13-TI288-04053 | 8.6 | 12 |
| 24 | 432 | 13-TI432-04053 | 9.5 | 12 |
| 24 | 576 | 13-TI576-04053 | 10.2 | 14 |
Fiber type: 200μm G.657.A1, Operating Temp. Range (°C): -40 to +70, Tensile rating ≥ 1W, where W is weight of cable per km, Performance Standard: ICEA S-122-744
1.3 Microcable
| Fiber Count Tube | Fiber Count Cable | Cablcon Standard Part Number | OD (mm) | Typical Minimum Duct ID (mm) |
|---|---|---|---|---|
| 12 | 96 | 13-TI096-04052 | 4.5 | 6 |
| 12 | 144 | 13-TI144-04052
| 5.2 | 8 |
| 12 | 288 | 13-TI288-04052
| 6.8 | 10 |
| 24 | 432 | 13-TI432-04052 | 7.2 | 10 |
| 24 | 576 | 13-TI576-04052 | 8.1 | 12 |
Fiber type: 200μm G.657.A1, Operating Temp. Range (°C): -40 to +70, Tensile rating ≥ 1W, where W is weight of cable per km, Performance Standard: ICEA S-122-744
1.4 Microcable
| Fiber Count
Count | Cablcon Standard Part Number | OD (mm) | Typical Minimum Duct ID (mm) |
|---|---|---|---|
| 12-72 | 13-TI0XX-04051 | 5.3 | 8 |
| 96 | 13-TI096-04051 | 6.4 | 8 |
| 144 | 13-TI144-04051 | 8.2 | 10 |
Fiber type: 250μm G.657.A1, Operating Temp. Range (°C): -40 to +70, Tensile rating ≥ 1W, where W is weight of cable per km, Performance Standard: ICEA S-122-744
Why Choose the Microcable?
Choosing the Microcable - Loose Tube series provides unparalleled performance and flexibility for high-density fiber installations. Its compact design and use of 200μm and 250μm G.657.A1 fibers make it an ideal choice for space-constrained deployments, such as metropolitan networks, data centers, and campus infrastructures. The cables are built to withstand harsh environmental conditions, with an operating temperature range of -40°C to +70°C and the ability to handle high tension during installation. Certified to meet ICEA S-122-744 standards, these cables ensure high tensile strength and durability. With fiber counts ranging from 12 to 576, the Microcable series supports a variety of applications, including FTTx deployments, duct and conduit installations, and aerial or buried installations, providing reliable, long-term network solutions across various environments.
