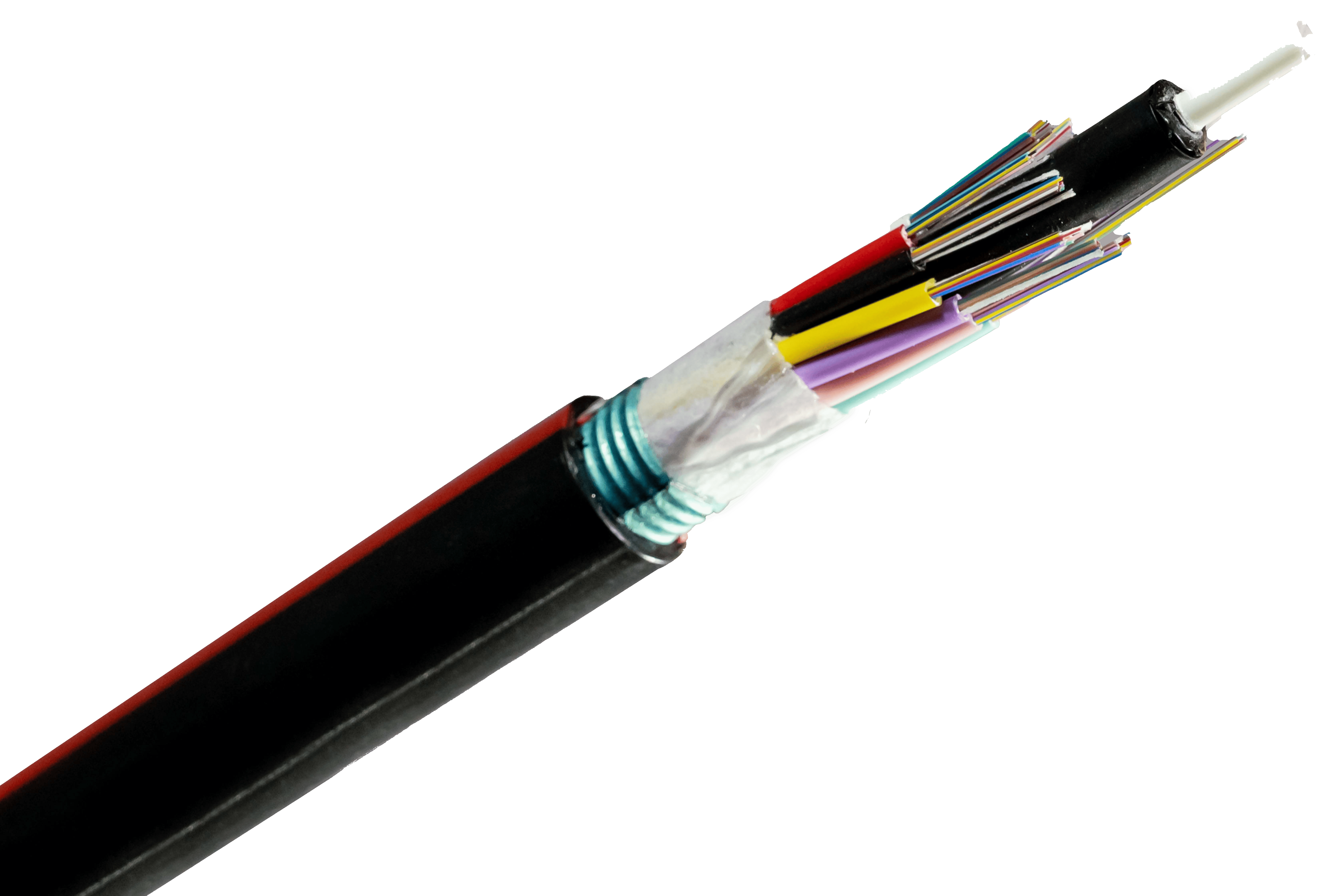

Loose Tube General Purpose
General Purpose Loose Tube Cables offer a durable, versatile option for indoor or outdoor fiber applications, available in dielectric and armored dry loose tube designs. With strong tensile performance and wide temperature tolerance, they provide long-term reliability for demanding networks, with Cablcon’s engineers available to support custom configurations. View the General Purpose Loose Tube Summary here, or request a quote for customization or project support.
Applications
- Telecommunication Networks and Data Centers: Suitable for use in long-distance telecom infrastructures and data center connectivity.
- Enterprise Networks: Ideal for businesses requiring a robust and reliable fiber solution.
- FTTx Deployments: Designed for fiber-to-the-home (FTTH) or fiber-to-the-premises (FTTP) installations.
- Aerial and Duct Installations: Can be deployed in both aerial and duct environments due to its strong mechanical and environmental resilience.
Technical Specifications
- Fiber Type: 250μm G.652.D fiber, providing low attenuation for high-performance signal transmission.
- Fiber Count: Dielectric fiber count tube ranges from 12-24 and fiber count cable ranges from 12-432. Our Single Jacket / Single Armor version fiber count tube ranges from 12-24 and fiber count cable from 12-432.
- Operational Temperature Range: -40°C to +70°C, designed to perform in extreme environmental conditions.
- Tensile Rating: General Purpose Dielectric Dry Loose Tube at ≥ 2.7 kN and General Purpose Single Jacket/Single Armor at ≥ 2.7 kN. Available in configurations up to 432 fibers, maximizing the capacity for high-demand applications.
Performance Benefits
- Performance Standards: Compliant with Telcordia GR-20 and ICEA S-87-640 standards for reliable performance and durability.
- High Durability: Engineered with high tensile strength, these cables can withstand challenging installations, including pulling and bending.
- Temperature Flexibility: Operates effectively in extreme temperature conditions, ensuring performance in both hot and cold environments.
- Moisture and Environmental Protection: The dry loose tube design prevents water ingress, providing long-lasting fiber protection.
Construction Features
- Dry Loose Tube Construction: Protects the fibers from water and moisture, reducing the risk of fiber damage in outdoor conditions.
- Single Jacket, Single Armor (Optional): Provides additional mechanical strength and protection from environmental hazards, including rodents and heavy machinery.
- Mechanical Protection: The single armor option adds an extra layer of mechanical defense, ideal for environments where enhanced protection is required.
General Purpose Dielectric Dry Loose Tube Cable
| Fiber Count Tube | Fiber Count Cable | Cablcon Standard Part Number | OD (mm) |
|---|---|---|---|
| 12 | 12-60 | 13-LI0XX-0404 | 10.5 |
| 12 | 72 | 13-LI072-0404 | 10.7 |
| 12 | 96 | 13-LI096-0404 | 12.3 |
| 12 | 144 | 13-LI144-0404 | 15.5 |
| 12 | 288 | 13-LI288-0404 | 18.5 |
| 24 | 432 | 13-LI432-0404 | 18.5 |
Fiber type: 250μm G.652.D, Operating Temp. Range (°C): - 40 to + 70, Tensile rating ≥ 2.7 kN, Performance Standard: Telcordia GR-20 & ICEA S-87-640
General Purpose Single Jacket / Single Armor Dry Loose Tube Cable
| Fiber Count Tube | Fiber Count Cable | Cablcon Standard Part Number | OD (mm) |
|---|---|---|---|
| 12 | 12-60 | 13-KI0XX-0404 | 12.3 |
| 12 | 72 | 13-KI072-0404 | 12.8 |
| 12 | 96 | 13-KI096-0404 | 14.3 |
| 12 | 144 | 13-KI144-0404 | 17.5 |
| 12 | 288 | 13-KI288-0404 | 20.5 |
| 24 | 432 | 13-KI432-0404 | 20.5 |
Fiber type: 250μm G.652.D, Operating Temp. Range (°C): - 40 to + 70, Tensile rating ≥ 2.7 kN, Performance Standard: Telcordia GR-20 & ICEA S-87-640
Why Choose Loose Tube General Purpose Cable?
The General-Purpose Loose Tube Cables provide a reliable and high-performing fiber optic solution for both indoor and outdoor applications. Their dry loose tube construction ensures moisture resistance, while the single-armored option adds an extra level of protection for harsh environments. These cables are compliant with industry standards, ensuring a reliable connection over long distances. With high tensile strength and a range of fiber count options, this cable is a top choice for telecommunications companies, data centers, and FTTx deployments that require durable, high-quality infrastructure.
