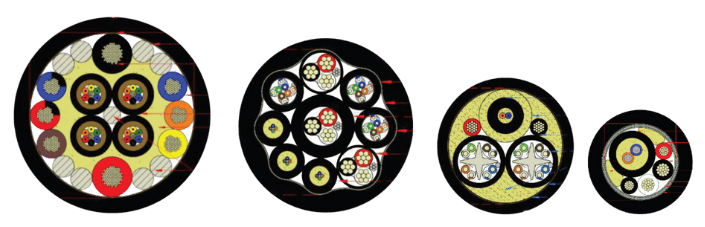

HybriLite® Outdoor PLTC Riser Solutions for Small Cell 5G oDAS and A/V Applications
HybriLite® hybrid cables combine power and fiber in a single UL-rated design, making them an ideal solution for oDAS deployments, as well as iDAS, small cells, automation, security, WiFi, A/V, Digital Electricity®, and ±190VDC applications. Offered as bulk cable or pre-terminated assemblies, they integrate easily into diverse installation environments and are manufactured in Cablcon’s U.S.-based ISO 9001/TL 9000 facilities. All fiber assemblies are tested to GR-326-CORE I4 and IEC-61300-3-35, with test records available at fibertest.cablcon.com.
| RISER: CMR, CL2R, CL3R, CMG | SINGLE OR MULTIMODE | CATEGORY ELEMENTS | INDIVIDUAL CONDUCTORS | COPPER SUB-CABLES |
|---|---|---|---|---|
| Type & Count | Any type & unlimited fiber count | Riser or Plenum unlimited count | Unlimited # of listed conductors | Unlimited # of listed jacketed sub-cables |
| Wire AWG 30 to 6 AWG* | Single & Multimode | 24, 23, & 22 AWG solid or stranded |
30 to 10 AWG CL3 = 12 Max |
30 to 10 AWG CL3 = 12 Max |
| Temperature rating** | 75° C | 75° C | 105° C | 105° C |
| Material Types | {LSZH & PVC} | {LSZH, PVC & FEP} | {HFPE, FEP, PVC} | {HFPE, FEP, PVC} |
| Optical fibers may be comprised of 250μ, 900μ, 1.6mm, 2mm & 3mm or multi-fiber sub-cables | ||||
| Coaxial 50 & 75 ohm may be included in most listed composite constructions | ||||
| Cables listed as CMR, CMG or PLTC-OF may be printed as Sunlight Resistant | ||||
| Shielding of copper sub-cables and of the overall cable is permitted | ||||
| Fire rated to UL1666 & may be marked FT4/IEEE1202 | ||||
| Cables may be armored | ||||
