iDAS Capabilities
HYBRILITE® PLENUM RATED SOLUTIONS FOR IN-BUILDING SMALL CELL 5G DISTRIBUTED ANTENNAE SYSTEM (IDAS)

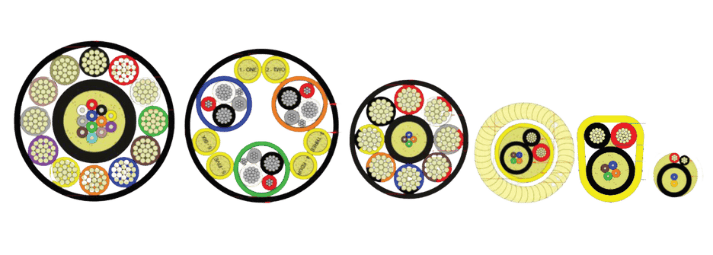

HybriLite® hybrid cables provide a simplified power-and-fiber solution for a wide range of applications, including iDAS, oDAS, small cells, automation systems, security, WiFi, and Digital Electricity®/±190VDC networks. Combining copper and fiber under a single UL-rated jacket, they are available as bulk cable or pre-terminated assemblies and integrate easily into diverse installation environments. Manufactured in Cablcon’s U.S.–based ISO 9001/TL 9000 facilities and tested to GR-326-CORE I4 and IEC-61300-3-35, these solutions deliver dependable, standards-based performance with test records available at fibertest.cablcon.com.
| PLENUM CMP, CL2P, CL3P | SINGLE OR MULTIMODE | SINGLE OR MULTIMODE | SINGLE OR MULTIMODE |
|---|---|---|---|
| # of fibers & type | 2 to 12 of 900 μ TB in one subunit | 2 to 6 900 μ TB in one subunit | 6 x 2mm simplex |
| Wire AWG | 18 to 12 AWG | 20 to 12 AWG | 20 & 18 AWG |
| # of conductors | 2 to 12 | 1 to 12 | 4 conductors x 3 subunits |
| Temperature rating | 75° C | 75° C | 75° C |
| Material type | PVC |
PVC | FEP or PVC |
| Cables may be armored | |||
