HTTA Capabilities
HybriLite® fiber-to-the-antenna solutions are built for demanding environments, offering flexible configurations designed around your network requirements and certified to UL® and IEC standards. Manufactured in Cablcon’s U.S.-based ISO 9001/TL 9000 facilities and tested to GR-326-CORE I4 and IEC-61300-3-35, these primary trunks and topside jumpers ensure reliable, standards-compliant performance with test records available at fibertest.cablcon.com. As a domestic provider, Cablcon delivers quick-turn custom lengths that help reduce material waste, freight, and overall installation costs.

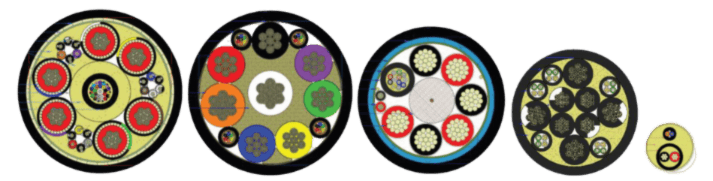

| TC-OF | SINGLE OR MULTIMODE | INDIVIDUAL CONDUCTORS | COPPER PAIRS & TRIADS | COPPER SUB-CABLES |
|---|---|---|---|---|
| Type & Count | Any type & unlimited fiber count | Unlimited # of listed conductors | Unlimited # of listed conductors | Unlimited # of listed jacketed sub-cables |
| Wire AWG 18 to 4/0 AWG | Single & Multimode | Wire AWG 18 to 4/0 AWG | Wire AWG 18 to 4/0 AWG | Wire AWG 18 to 4/0 AWG |
| Temperature rating | 75° C | 90° C | 90° C | 90° C |
| Insulations | Buffer TPE & PVC | PVC, PVC/Nylon, HFPE, XLPE & FEP | PVC, PVC/Nylon, HFPE, XLPE & FEP | PVC, PVC/Nylon, HFPE, XLPE & FEP |
| Shielding of copper sub-cables and of the overall cable is permitted | ||||
| Cable Jacket Options PVC & LSZH PVC, TPE, CPE, FEP, Thermoset & Thermoplastic Halogen Free | ||||
| Optical fibers may be comprised of 250μ, 900μ, 1.6mm, 2mm & 3mm or multi-fiber sub-cables | ||||
| Low Inductance coaxial power conductors | ||||
| Other elements such as alarm pairs, Thermocouple & RTD wire | ||||
| Shield types include: braids, foil/drain, helical & corrugated copper tapes, bronze tapes | ||||
| Strength members as hoisting and hanging aids include aramid & steel cords and braids | ||||
| Cables available with oil resistant and sunlight resistant jackets | ||||
| Fire rated & marked FT4/IEEE1202 | ||||
| Cables may be armored - Interlock aluminum and galvanized steel | ||||
