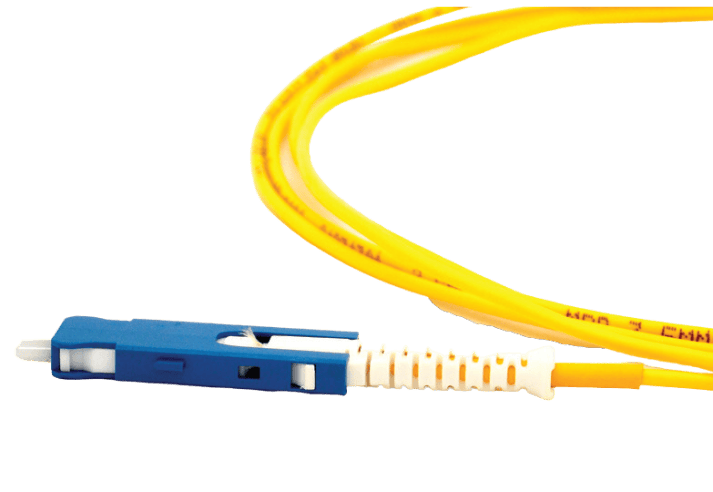

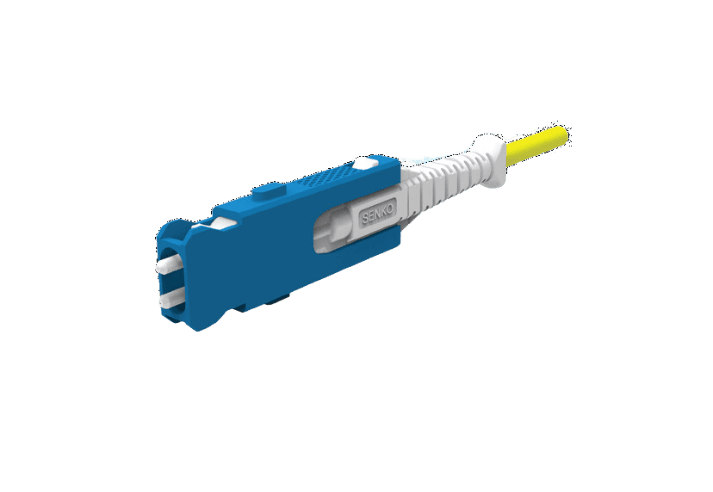

SN® Connectors
SN® Connectors offer a compact 3.1mm-pitch ferrule design and a convenient push-pull boot that enables easy access in high-density environments. Available in 1.6mm or customizable 2mm cordage with G.657.A2 singlemode or OM4 multimode options, these assemblies meet industry standards and support data centers, central offices, C-RAN iEN hubs, transceiver connections, and other dense fiber deployments. View the SN® Summary here or request a quote to discuss your project needs.
Applications
-
Data Centers/Central Offices/C-RAN iEN Hubs
-
High-density cross-connects
-
Fiber Optic Transceivers
Features
- 1.25mm ferrules provide a proven, familiar platform
- Push-pull boot provides easy access to all connectors without pull tabs or tools

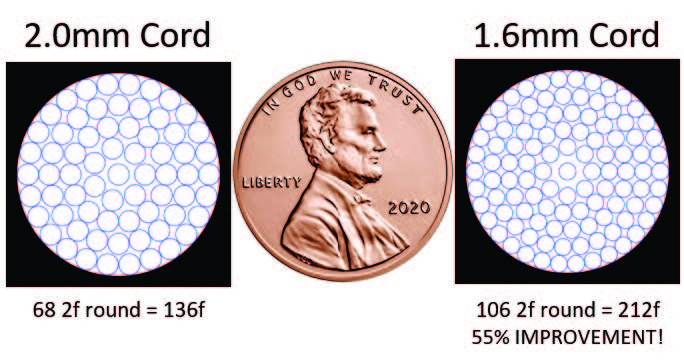

- 1.6mm riser-rated round cordage reduces patch panel congestion
- Available with OS2 singlemode (G.657.A2) and OM4 multimode fiber
- Cablcon assemblies meet or exceed GR-326; cable meets GR-409 Interconnect
| FIBER COUNT | OD | TENSILE | BEND RADIUS |
|---|---|---|---|
| 2 fiber Round SM | 1.6 mm | 22 lbf | 0.39" |
| 2 fiber Round MM | 1.6 mm | 22 lbf | 0.39" |
| 2 fiber Round SM | 2.0 mm | 22 lbf | 0.79" |
| 2 fiber Round MM | 2.0 mm | 22 lbf | 0.79" |
| CONNECTOR | IL MAX (DB) | RL MAX (DB) |
|---|---|---|
| SM SN | 0.25 |
-55 |
| MM SN | 0.25 | -30 |
