OptiTip® & OptiTap®

Corning's OptiTip® and OptiTap® solutions deliver fast, reliable, and cost-effective fiber network deployment for indoor and outdoor applications. These factory-terminated, robust cabling systems ensure durability, low optical loss, and high performance, meeting the demands of modern networks. OptiTip® supports multi-fiber connections for flexible configurations, while OptiTap® simplifies single-fiber installations with weatherized connectors for aerial, direct burial, and duct setups. Together, they offer adaptable, high-quality solutions to streamline installation and enhance network reliability. Contact Cablcon for more information on how our products can meet your needs.

OptiTip® Assembly

OptiTip® Assemblies enable fast, cost-efficient outdoor fiber deployment with ruggedized MT-based connectors that quickly mate up to 12 fibers at once. Available in pinned or non-pinned versions for watertight terminal or in-line connections, they are factory-tested for low loss and offered with SST-Drop™ or FREEDM® flat drop cables to support seamless indoor-to-outdoor installations. View the data sheet here.

OptiTip® MT Preterminated Cabling Solution: Up to 50% faster per system deployment
Factory-Tested: Quick, reliable installation
Flexibility for Various Network Designs: Indoor and outdoor application
OptiTip® MT Connector: Compatible with FlexNAP™ System, MDU terminals, FDT stubbed terminals
Robust Design Keeps Connector Intact During Installation: Integral pulling eye/connector cap designed for 100 lb maximum pulling tension

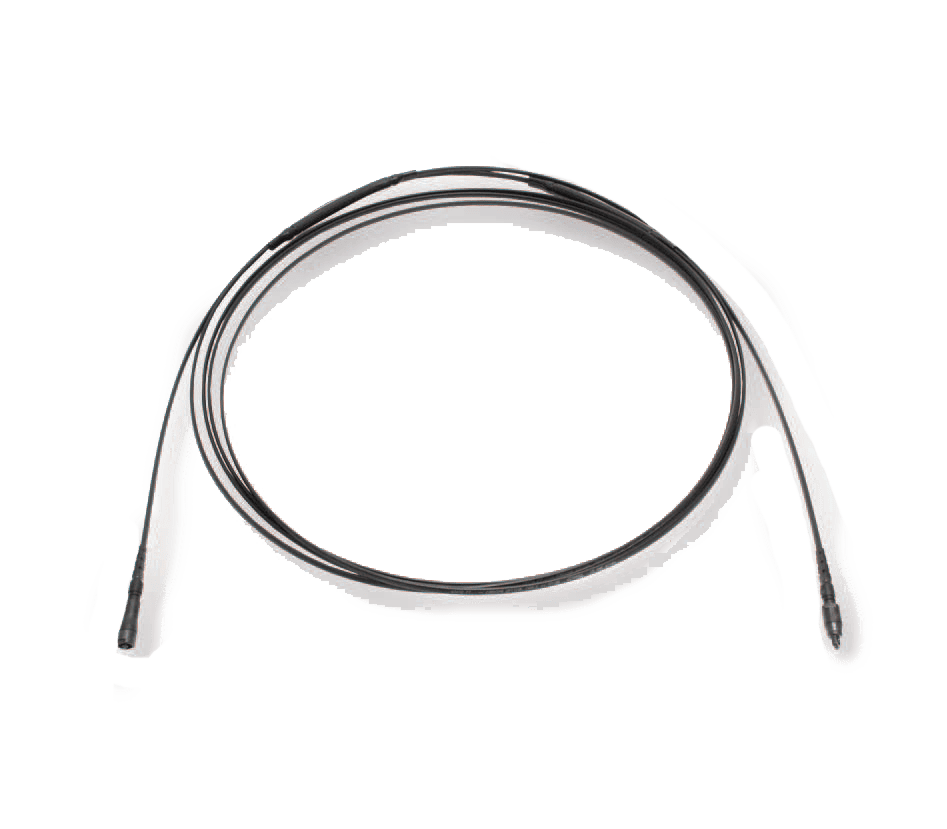

Up close of an image showing fiber OptiTip pigtails.

100' LONG 2 FIBER OPTITIP® PIGTAILS

Corning Part Number 00M102EB4D1E100F-P
Spec Sheets Available By Request

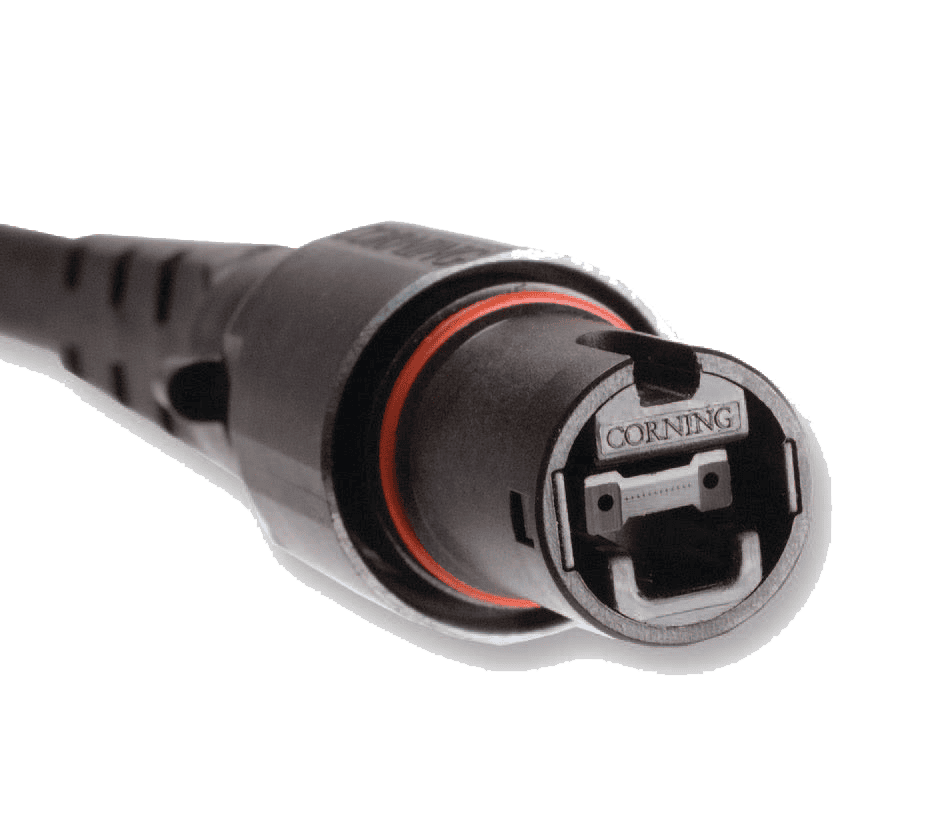

Up close image of an OptiTip MT connector.

CONNECTORS

OptiTip® MT Connector
LC, SC and ST Compatible Connectors

CABLES

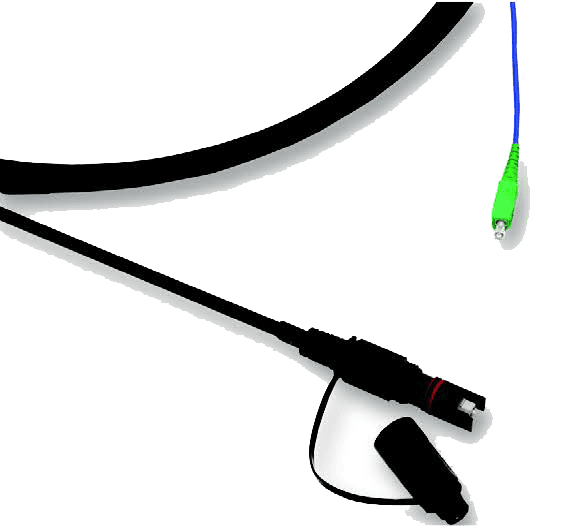

SST-Drop - Outdoor Cable
FREEDM LSZH Flat - Drop Indoor/Outdoor Cable

TRUNKS

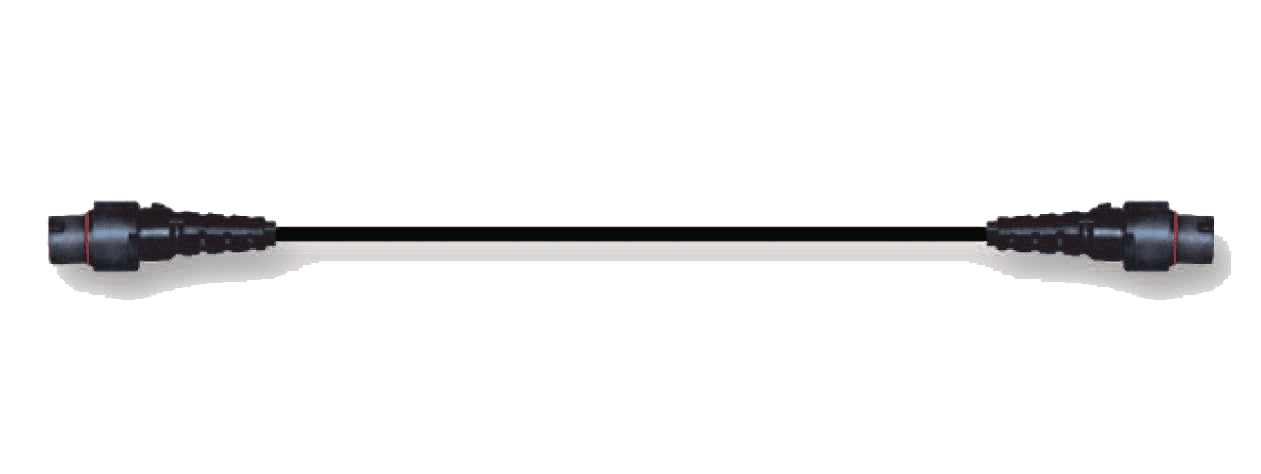

OptiTip® Direct Trunks - Female MT Connector
OptiTip® Extender Trunks - Female and Male MT Connector
Outdoor or Indoor/Outdoor Cable Factory Terminated
Connectors Protected with Sealed Dust Cap and Integral Pulling Eye

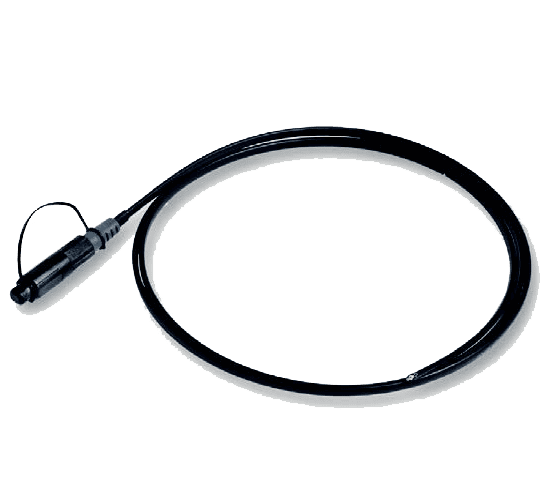

OptiTap® Assembly

The Corning OptiTap® SST-Drop® cable assemblies offer a factory-terminated, weatherized solution for faster and more cost-effective fiber network deployment. With customizable configurations and durable connectors, they support various installation methods, including aerial, direct burial, and duct. Designed for performance and ease of installation, these assemblies improve network reliability while reducing deployment time and costs. View the data sheet here.
