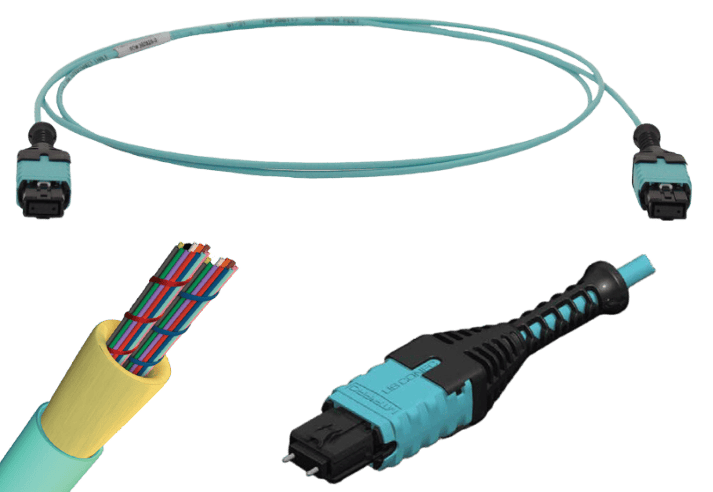

MTP PRO Elite Connectors®
MTP® PRO Field-Reversible Cable Assemblies allow quick, tool-free polarity and gender changes, preventing mismatches in high-density environments. With Elite ferrules, a push-pull boot, and OM4 or G.657.A2 options in 2mm or 3mm plenum cables, they deliver high performance and flexibility. U.S.–made in ISO 9001/TL 9000–certified facilities and built to GR-1435-CORE and IEC standards, they’re ideal for data centers, central offices, C-RAN hubs, and MPO applications. View the MTP® PRO Summary here or request a quote to discuss your project needs.
Applications
-
Data Center/Central Offices/C-RAN iEN Hubs
-
High-density interconnects where space is at a premium
-
Fiber Optic Transceivers
-
MTP® PRO cables can be used in any MPO application
Features
-
Ability to reverse the gender or polarity of the connector in a couple seconds (tool required)
-
Push-pull boot improves connector access in the field
-
Elite ferrule comes standard and provides outstanding IL and RL performance
-
Available with OS2 singlemode (G.657.A2) and OM4 multimode fiber
-
Cablcon assemblies meet or exceed GR-1435; cable meets GR-409 Interconnect
| FIBER COUNT | OD | TENSILE | BEND RADIUS |
|---|---|---|---|
| 12f | 2.0 mm | 50 lbf | 0.79" |
| 12f | 3.0 mm | 50 lbf | 1.18" |
| 24f | 3.0 mm | 150 lbf | 1.18" |
| CONNECTOR | IL MAX (DB) | RL MAX (DB) |
|---|---|---|
| SM MTP® PRO (Elite) | 0.35 | -60 |
| MM MTP® PRO (Elite) | 0.35 | -30 |
