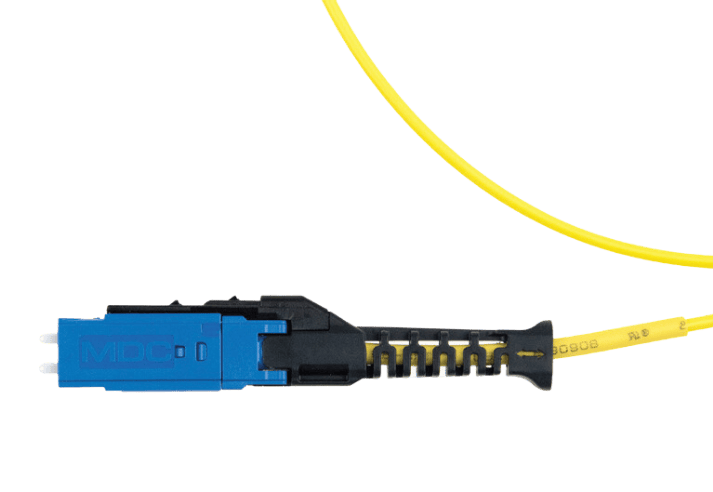

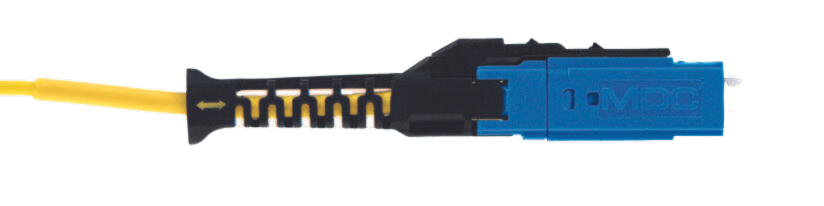

MDC® Connectors
Cablcon’s MDC® Connectors deliver ultra-compact, high-performance fiber connectivity with 1.25mm ferrules and a field-reversible design that allows quick polarity changes without exposing bare fibers. A push-pull boot improves accessibility, while 1.6mm and 2mm cordage options—available in G.657.A2 singlemode or OM4 multimode—support a wide range of high-density applications. Custom lengths and quick-turn manufacturing further enhance flexibility for data centers, central offices, C-RAN iEN hubs, and cross-connect environments. View the MDC® Summary here or request a quote to discuss your project needs.
Applications
-
Data Centers/Central Offices/C-RAN iEN Hubs
-
High-density cross-connects
-
Fiber Optic Transceivers
Features
-
1.25mm ferrules provide a proven, familiar platform
-
Field-reversible without exposing any bare fibers in the process
-
Push-pull boot provides easy access to all connectors without pull tabs or tools
-

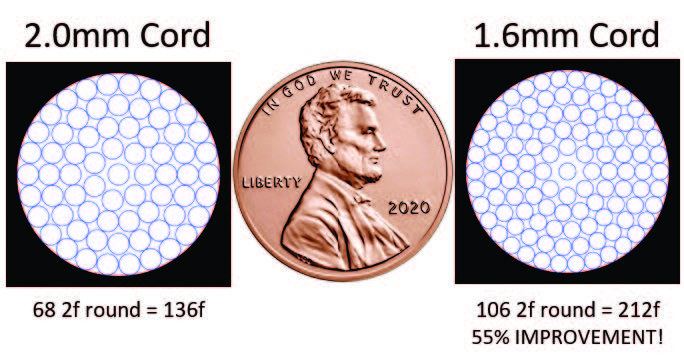

1.6mm riser-rated round cordage reduces patch panel congestion
-
Available with OS2 singlemode (G.657.A2) and OM4 multimode fiber
-
Cablcon assemblies meet or exceed GR-326; cable meets GR-409 Interconnect
| FIBER COUNT | OD | TENSILE | BEND RADIUS |
|---|---|---|---|
| 2 fiber Round SM | 1.6 mm | 22 lbf | 0.39" |
| 2 fiber Round MM | 1.6 mm | 22 lbf | 0.39" |
| 2 fiber Round SM | 2.0 mm | 22 lbf | 0.79" |
| 2 fiber Round MM | 2.0 mm | 22 lbf | 0.79" |
| CONNECTOR | IL MAX (DB) | RL MAX (DB) |
|---|---|---|
| SM MDC | 0.25 | -55 |
| MM MDC | 0.25 | -30 |
