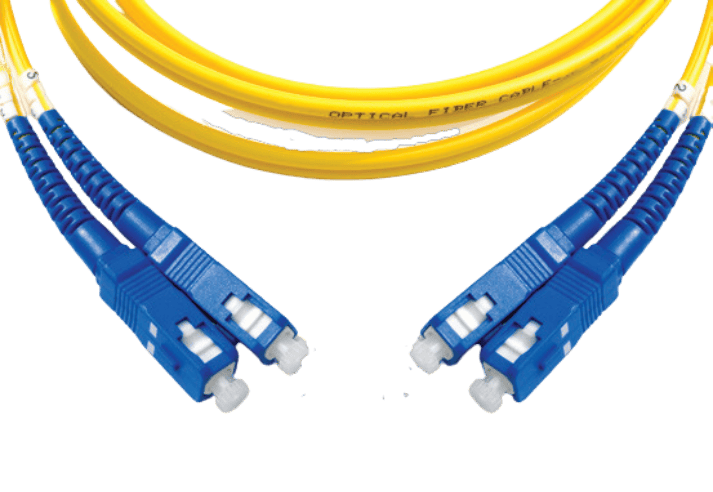

Legacy Fiber Optic Jumpers
Legacy Fiber Optic Jumpers are U.S.–made, standards-compliant assemblies offered in simplex and duplex designs with multiple cordage sizes, fiber types, and connector options. Built in ISO 9001/TL 9000–certified facilities and available in a wide range of configurations, they provide reliable, flexible solutions for everyday fiber connectivity needs. View the Legacy Jumpers Summary here or request a quote to discuss your project needs.
Available in:
-
Simplex and duplex
-
1.2mm, 1.6mm and 2.0mm
-
Riser and plenum
-
Single mode 9/125, Multimode 62.5/125, 50/125, 50/125 Laser Optimized OM3
-
& OM4
-
LC, SC, FC, ST
-
PC, UPC, APC
| CONNECTOR TYPE | CORE | WAVELENGTH nm | BI-DIRECTIONAL IL (dB) PER CONNECTOR | UNIDIRECTIONAL IL (dB) PER FIBER | REFLECTANCE (dB) |
|---|---|---|---|---|---|
| Single mode single fiber | 8.3 um UPC | 1310/1550 | 0.3 | 0.6 | <-50 |
| 8.3 um APC | 1310/1550 | 0.3 | 0.6 | <-65 | |
| Multimode single fiber | 50 um | 850/1300 | 0.3 | 0.6 | <-30 |
| 62.5 um | 850/1300 | 0.3 | 0.6 | <-30 |
