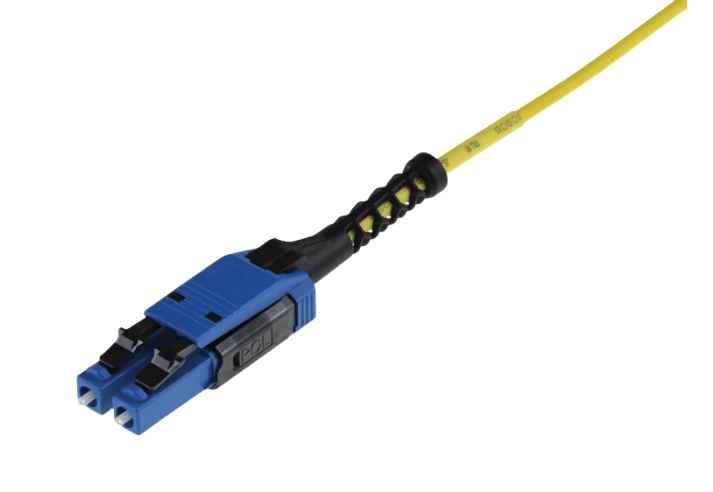

Field-Reversible LC Uniboot Connectors & Jumpers
Field-Reversible LC Uniboot Connectors & Jumpers feature a tool-free, push-pull design that streamlines installation, improves accessibility, and reduces fiber exposure. Offered in 1.6mm and 2mm cordage with G.657.A2 singlemode or OM4 multimode options, they provide flexible, high-performance connectivity for data centers, central offices, D-RAN, MEC hubs, and other high-density environments. View the LC Uniboot Summary here or request a quote to discuss your project needs.
Applications
- Data Center/Central Offices/D-RAN / MEC iEN Hubs
- High-density cross-connects
- Fiber Optic Transceivers
Features
-
Field-reversible without exposing any bare fibers in the process
-
Push-pull boot provides easy access to all connectors without pull tabs or tools
-

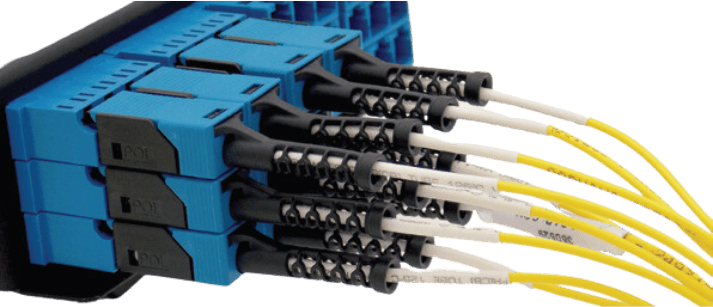

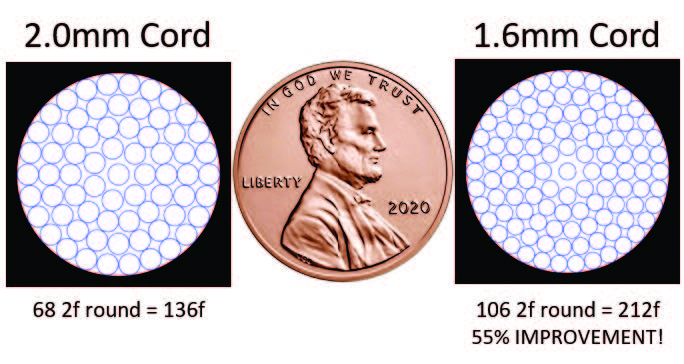

1.6mm riser-rated round cordage reduces patch panel congestion
-
Available with OS2 singlemode (G.657.A2) and OM4 multimode fiber
-
Cablcon assemblies meet or exceed GR-326; cable meets GR-409 Interconnect
| FIBER COUNT | OD | TENSILE | BEND RADIUS |
|---|---|---|---|
| 2 fiber Round SM | 1.6 mm | 22 lbf | 0.39" |
| 2 fiber Round MM | 1.6 mm | 22 lbf | 0.39" |
| 2 fiber Round SM | 2.0 mm | 22 lbf | 0.79" |
| 2 fiber Round MM | 2.0 mm | 22 lbf | 0.79" |
| CONNECTOR | IL MAX (DB) | RL MAX (DB) |
|---|---|---|
| SM LC | 0.25 |
-55 |
| MM LC | 0.25 | -30 |
