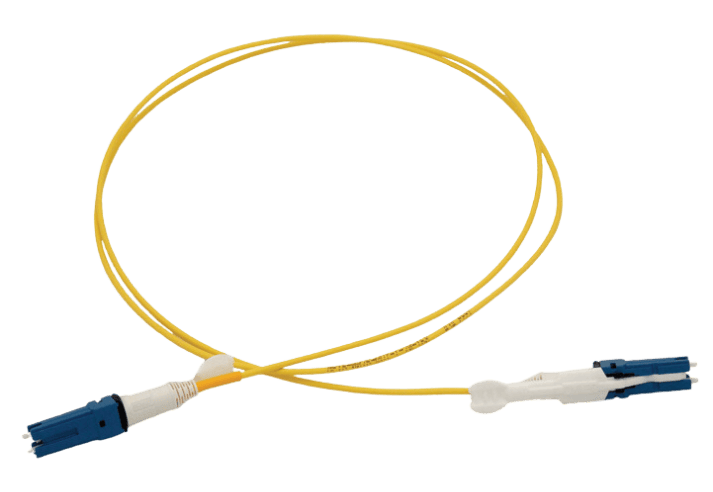

CS® Connectors
CS® Connectors boost patch panel density by over 50% with a compact, push/pull-tab design that simplifies access in tight spaces. Available in 1.6mm or 2.0mm cordage with G.657.A2 singlemode or OM4 multimode options, these U.S.-made assemblies meet ISO 9001, TL 9000, and GR-326-CORE standards, making them ideal for high-density data center and central office interconnects. View the CS® Summary here or request a quote to discuss your project needs.
Applications
-
Data Center/Central Offices/C-RAN iEN Hubs
-
High-density interconnects where space is at a premium
-
Fiber Optic Transceivers
Features
-

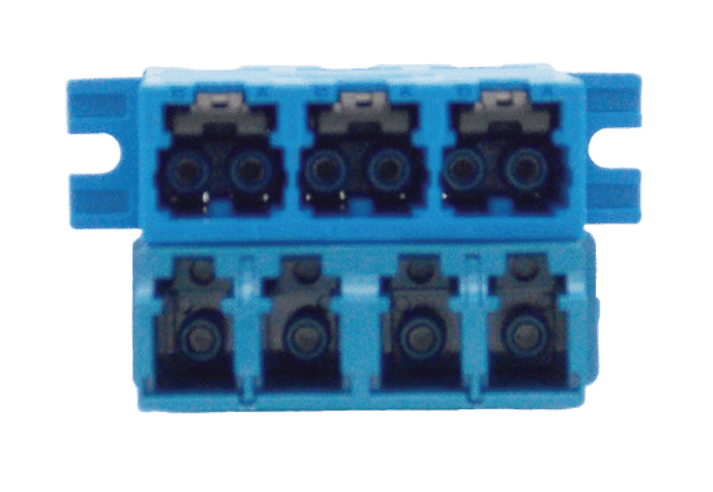

Reduced connector size increases capacity; push/pull tabs facilitate insertion and extraction
-

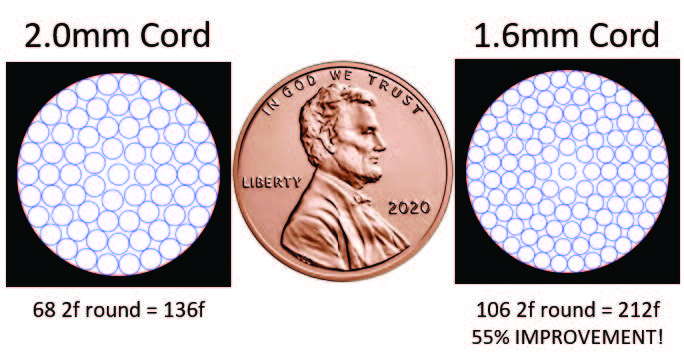

1.6mm or 2.0mm riser-rated cordage reduces patch panel congestion
-
Available with OS2 singlemode (G.657.A2) and OM4 multimode fiber
-
Cablcon assemblies meet or exceed GR-326; cable meets GR-409 Interconnect
-

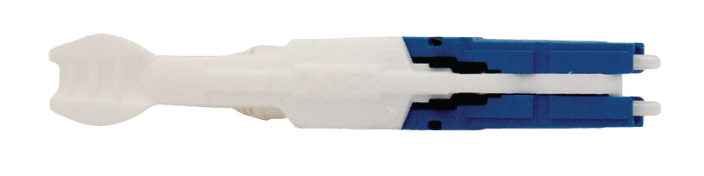

Push/pull tab for easier insertion and extraction
-
CS® connector has been adopted by QSFP-DD, OSFP and COBO
| FIBER COUNT | OD | TENSILE | BEND RADIUS |
|---|---|---|---|
| 2f | 1.65 mm | 22 lbf | 0.65" |
| 2f | 2.0 mm | 22 lbf | 0.79" |
| CONNECTOR | IL MAX (DB) | RL MAX (DB) |
|---|---|---|
| SM CS | 0.25 | -55 |
| MM CS | 0.25 | -30 |
