Collapsible Ribbon Assemblies

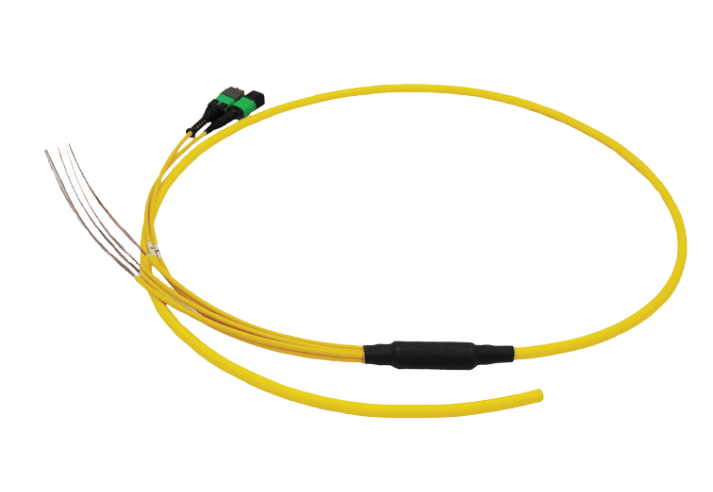

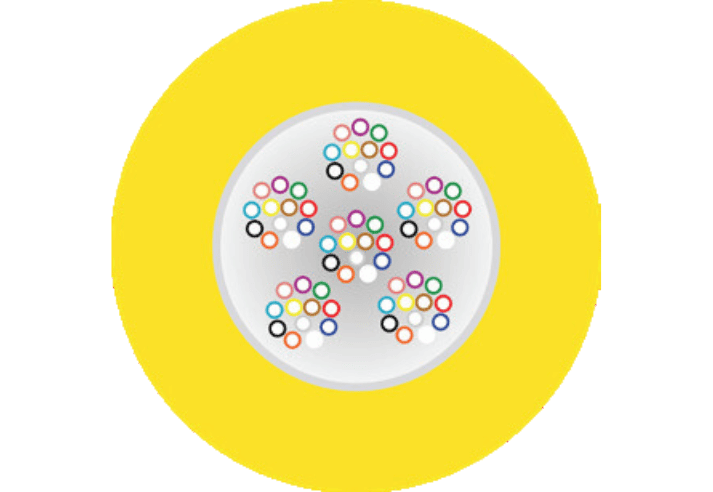

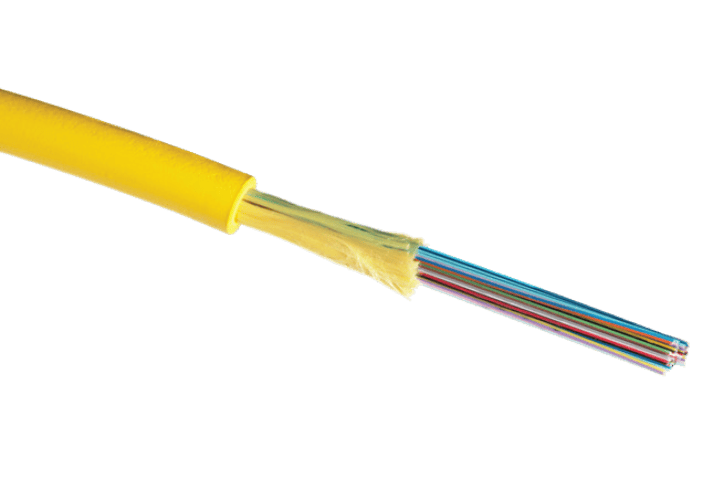

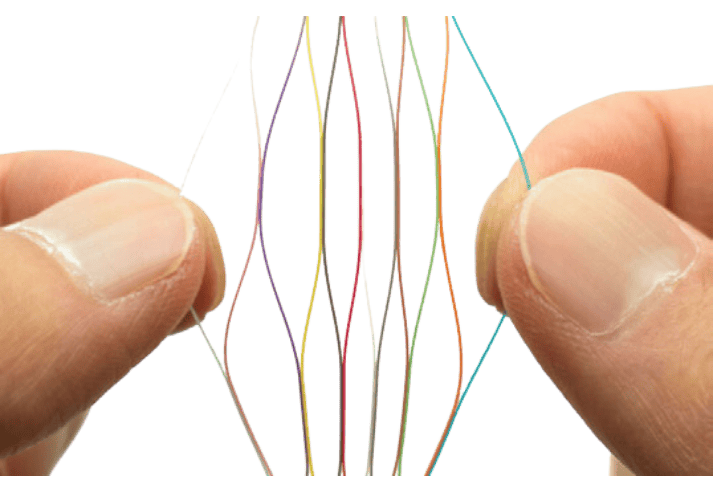

Collapsible Ribbon Trunk and Fanout Assemblies provide high-capacity, backbone-rated fiber in a compact, flexible design that improves bend performance and reduces splicing time. Available from 24 to 144 fibers and compatible with standard singlemode connectors, they offer customizable lengths and configurations for data centers, central offices, C-RAN hubs, and backbone applications. View the Collapsible Ribbon Summary here or request a quote to discuss your project needs.
Applications
-
Data Centers/Central Offices/Headends/C-RAN & iEN Hubs
-
Interconnection between fiber management panels and equipment
-
Connection to a fiber backbone or intra-building backbones
Features
-
Compact design and G.657.A2 fiber yield improved bend performance
-
Smaller OD facilitates increased airflow improving heat dissipation
-
Qualified industry leading components certified to meet GR-409, GR-326 & GR-1435
-
MTP® Pro features elite ferrule, field reversibility and push/pull boot
-
2-fiber round simplex fanout solutions for Uniboot and Next Generation connectors
-
Custom build configurations include leg length & staggered ends, custom labeling, pulling eye
| FIBER COUNT | OD | TENSILE | BEND RADIUS | FIBERS/TRAY |
|---|---|---|---|---|
| 24f | 5.4 mm | 150 lbs | 1.70" | 12,096 |
| 48f | 5.8 mm | 150 lbs | 1.83" | 19,968 |
| 72f | 6.2 mm | 150 lbs | 1.95" | 28,224 |
| 96f* | 7.6 mm | 150 lbs | 2.39" | 23,040 |
| 144f* | 9.2 mm | 150 lbs | 2.90" | 23,760 |
*denotes available on OFNR only
| CONNECTOR | IL MAX (DB) | RL MAX (DB) |
|---|---|---|
| MTP PRO (Elite) | 0.35 |
-60 |
| SCUPC, LCUPC | 0.25 | -55 |
| SCAPC, LCAPC | 0.25 | -65 |
| CS | 0.25 | -55 |
