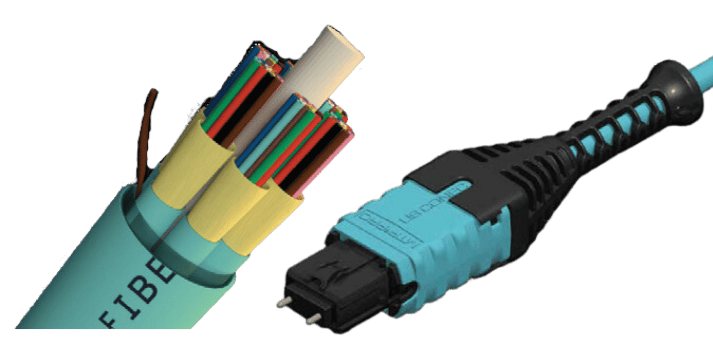

2mm Micro Breakout Assemblies
2mm Micro Breakout Assemblies deliver space-saving, high-density fiber routing with flexible breakout lengths and independently routable 2mm subunits across 24–144 fibers. Made in the USA at ISO 9001/TL 9000–certified facilities and built to GR-1435 and IEC cleanliness standards, these assemblies offer customizable lengths, labeling, and configurations for data centers, central offices, C-RAN hubs, and multi-floor deployments. View the Micro Breakout Summary here or request a quote to discuss your project needs.
APPLICATIONS
-
Data Centers/Central Offices/C-RAN & iEN Hubs
-
Termination to a fiber backbone
-
Direct interface or interconnect between fiber management panels and equipment using MTP®/MPO style connectors.
-
Multi-floor installations where select subunits are dedicated to each floor
FEATURES
-
Small O.D. (24F & 48F) 7.0mm, (72F) 8.2mm, (144F) 10.3mm – a space savings of more than double when using 2mm
-
vs. 3mm subunits
-
Smaller design facilitates increased airflow improving heat dissipation
-
Singlemode OS2(G657.A1) and Multimode Laser Optimized OM4 plenum-rated cable with Corning® glass
-
Qualified industry leading components to GR-409 & GR-1435
-
Pro series MTP® includes push/pull boot for easier insertion and extraction
-
Simple field polarity and gender changes with available one-step insertion/extraction tool
-
Custom build configurations include leg length & staggered ends, custom labeling, pulling-eye
