SN VIC

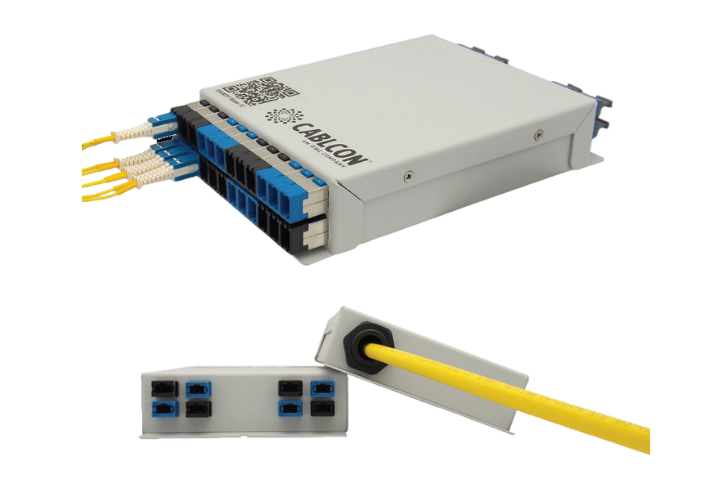

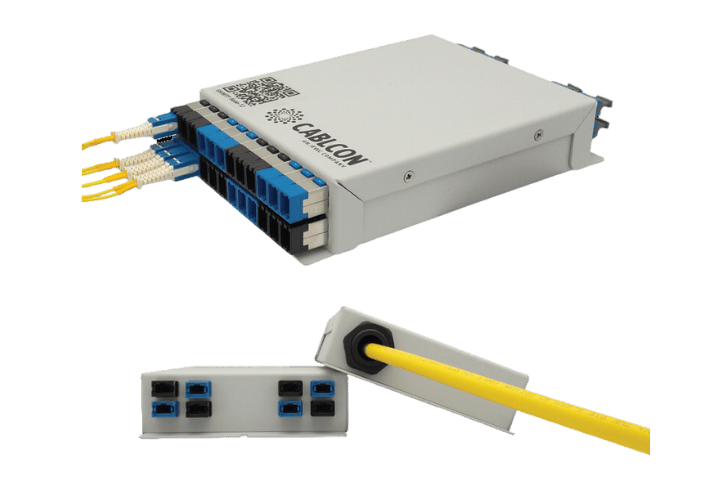

Cablcon’s SN VIC delivers high-density, user-friendly fiber interconnects in a compact 5" × 7.25" × 1.5" footprint with capacity for 48 channels (96 fibers), making it ideal for patch-panel functionality inside or outside traditional rack space. Designed to pair with Cablcon’s SN patch cables, it offers exceptional accessibility and cable management, with rear options including MPO/MTP ports or bend-tolerant ribbon and micro-breakout stubs. For a full overview, view the SN VIC Summary, or request a quote to discuss your application needs.
Applications
-

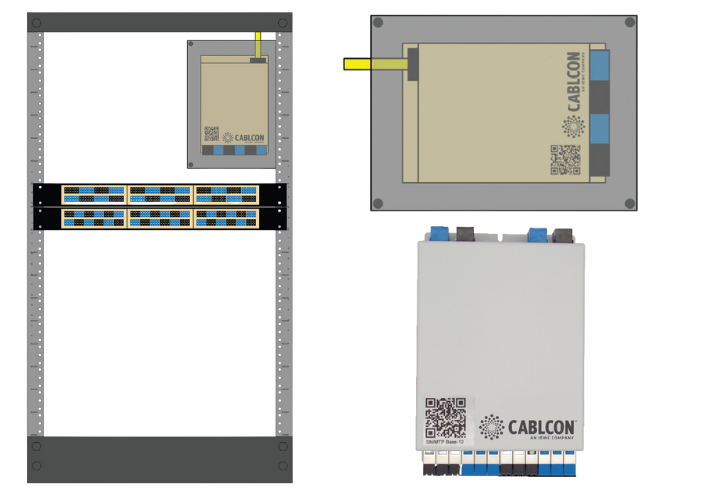

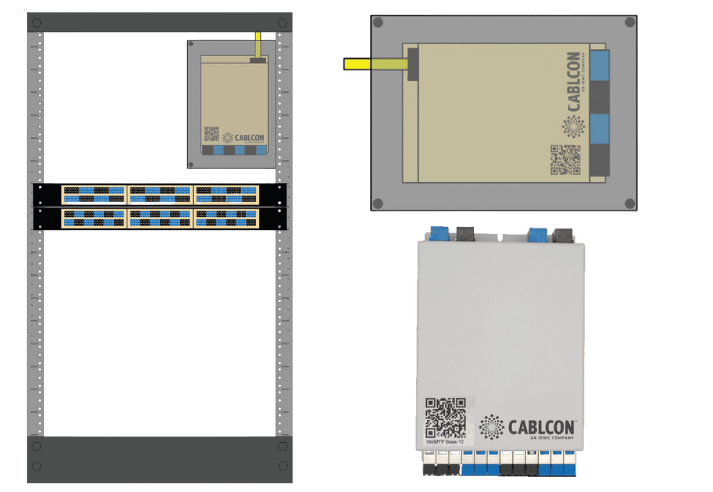

Rack-mount, Wall-mount, Zero U Vertical-Mount
-
Data Centers, Central Offices, Mobile Edge Computing
-
High-density cross-connects
-
Passive Optical Networks (PONs), Fiber to the Office (FTTO)
Features
-
48 SN ports on the front, totaling 96 fibers
-
Alternating colored adapter groupings for easier port identification
-
Pre-wired with your choice of rear MTP adapters or low-profile backbone cable
-
Small footprint for easy installation in a multitude of settings
-
QR Code provides access to port identification templates that can be stored on your network
-
RoHS, REACH-compliant. Collapsible ribbon cables are CPR-rated Cca- s1a, d1, a1
Specifications
| CONNECTOR | IL MAX (DB) | RL MAX (DB) |
|---|---|---|
| SM MDC | 0.25 | -55 |
| MM MDC | 0.25 | -30 |
| SM MTP (M) | 0.35 | -60 |
| MM MTP (M) | 0.35 | -30 |
| CABLE STYLE | OD | TENSILE | BEND RADIUS |
|---|---|---|---|
| 96f Collapsible Ribbon OFNR SM | 7.8 mm | 300 lbf | 2.46" |
| 96f 2mm Micro Breakout OFNP SM | 11.0 mm | 150 lbf | 4.33" |
| 96f 2mm Micro Breakout OFNP OM4 | 11.0 mm | 150 lbf | 4.33" |
