MPO VIC

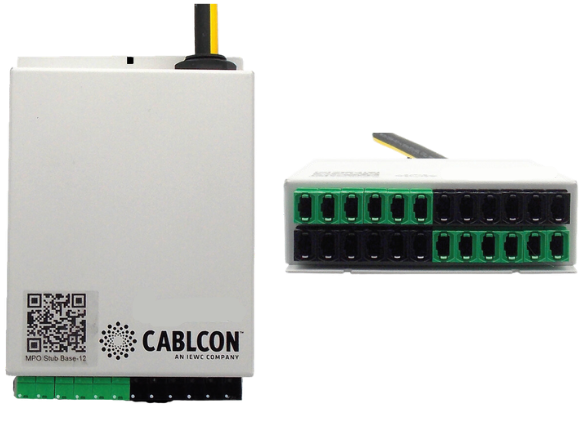

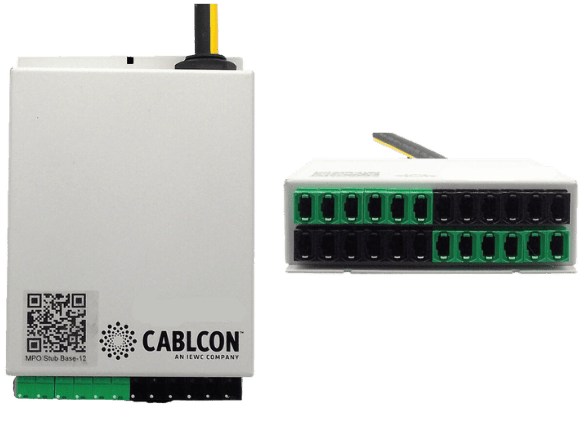

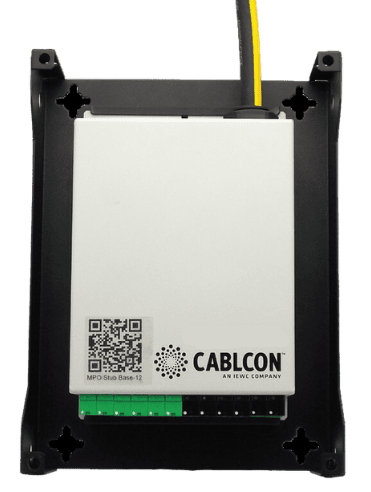

Cablcon’s MPO VIC provides a space-efficient way to consolidate high-fiber-count routes, bringing 288 fibers to a single location in a compact, versatile “junction box” that can be wall-mounted, rack-mounted, or installed in zero-U space. Designed to pair with the OptiClaw™ WMZ, it features 24 front-facing MPO ports and a single 288-fiber low-profile collapsible ribbon exiting the rear for streamlined routing to a splice enclosure. For a full overview, see the MPO VIC Summary, or request a quote to discuss your application needs.
Applications
-
Data Centers, Central Offices and Mobile Edge Computing
-
Wall-mount, Zero U-Mount
-
Meet-Me Rooms and Colocation
Features
-
24 front side MPO/MTP Male ports, totaling 288f
-
Alternating colored adapter groupings for easier port identification
-
Low-profile 288f collapsible ribbon cable exits rear of the VIC
-
Easy installation in a multitude of settings
-
QR Code provides access to port identification templates that can be stored on your network
-
Small footprint: each VIC is 5” wide x 7.25” deep x 1.5” tall
-
RoHS, REACH-compliant. Cable CPR rating is Cca-s1a, d1, a1
Specifications
| CONNECTOR | IL MAX (DB) | RL MAX (DB) |
|---|---|---|
| SM MTP (M) | 0.35 | -60 |
| CABLE STYLE | OD | TENSILE | BEND RADIUS |
|---|---|---|---|
| 288f Collapsible Ribbon OFNR/LSZH SM (G.657.A2) | 0.49" (12.5 mm) | 600 lbf/2670 N | 8" (204 mm) |
