LC VIC

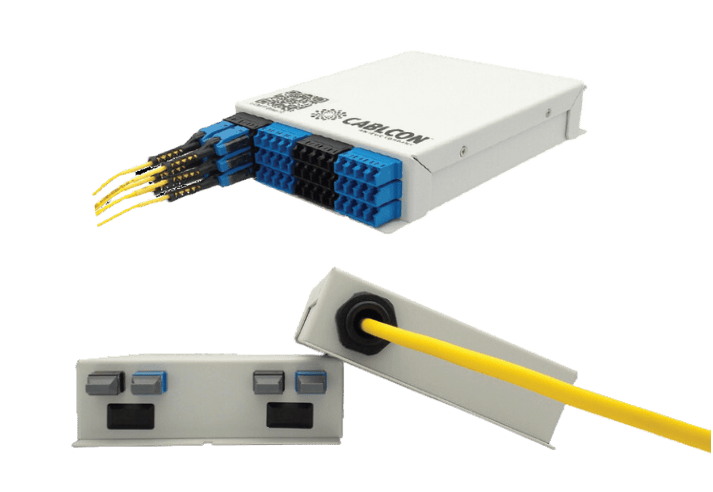

Cablcon’s LC VIC delivers high-density, user-friendly fiber interconnects in a compact 5" × 7.25" × 1.5" footprint, providing patch-panel functionality inside or outside traditional rack space. Optimized for push-pull LC Uniboot jumpers, it offers excellent accessibility and cable management, with rear options including MPO/MTP ports or bend-tolerant ribbon and micro-breakout stubs. For a full overview, see the LC VIC Summary, or request a quote to discuss your application needs.
Applications
-

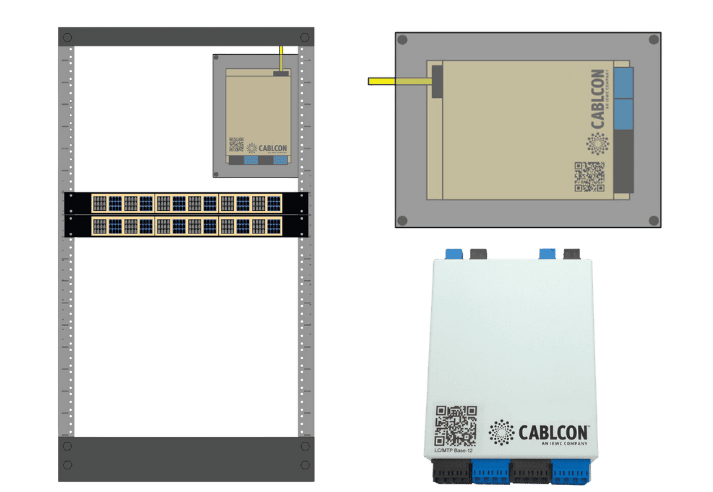

Rack-mount, Wall-mount, Zero U Vertical-Mount
-
Data Centers, Central Offices, Mobile Edge Computing
-
High-density cross-connects
-
Passive Optical Networks (PONs), Fiber to the Office (FTTO)
Features
-
48 shuttered LC ports on the front, now spaced to better accommodate tabbed and field-terminated
-
LCDX connectors
-
Alternating colored adapter groupings for easier port identification
-
Pre-wired with your choice of rear MPO adapters or low-profile backbone cable
-
Small footprint for easy installation in a multitude of settings
-
QR Code provides access to port identification templates that can be stored on your network
-
RoHS, REACH-compliant. CPR-rated cables now available upon request.
Specifications
| CONNECTOR | IL MAX (DB) | RL MAX (DB) |
|---|---|---|
| SM LC | 0.25 | -55 |
| MM LC | 0.25 | -30 |
| SM MTP (M) | 0.35 | -60 |
| MM MTP (M) | 0.35 | -30 |
| CABLE STYLE | OD | TENSILE | BEND RADIUS |
|---|---|---|---|
| 48f Collapsible Ribbon OFNP SM | 5.8 mm | 150 lbf | 1.83" |
| 48f 2mm Micro Breakout OFNP SM | 7.5 mm | 150 lbf | 2.95" |
| 48f 2mm Micro Breakout OFNP OM4 | 7.5 mm | 150 lbf | 2.95" |
