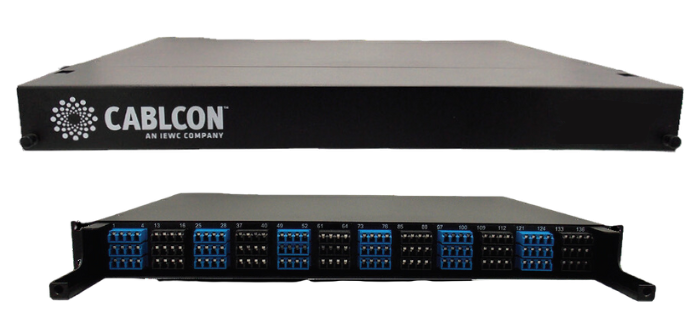

HD Patch & Splice
As fiber density increases in legacy environments, maximizing every rack unit is essential. The HD Patch & Splice provides a scalable in-rack solution for high-capacity patching and splicing, featuring 144 LC ports with shuttered, alternating-color adapters for easy ribbon identification. Each panel is pre-wired so collapsible ribbons exit safely for mass fusion splicing, and it includes a 144-fiber splice tray. Front and rear removable doors improve access in tight spaces, while recessed design simplifies cable management when panels are stacked. For a full overview, view the HD Patch & Splice Summary, or request a quote to discuss your application needs.
Part Number
-
LWF-011USPS144
Features
-
Shuttered LC adapters that are color-coded by ribbon
-
Removable front and rear doors that enhance access to adjacent panels
-
Collapsible ribbons that reduce preferential bend concerns and splice easily
-
Removable, easy-to-use mass fusion splice tray that accommodates 144 fibers (12 splices)
-
1RU footprint to maximize the space you have in your rack RoHS & REACH-compliant
Specifications
-
Fiber: G.657.A2 Singlemode Fiber (OS2)
-
LC Terminations: 0.25bB Max Insertion Loss (IL); -55dB Max Reflectance (RL)
-
Packaging: 24” W x 20” D x 2” H
Applications
-
Data Center Telecom & Meet-Me Rooms
-
Central Offices, Headends and Mobile Edge Computing
-
Other fiber-rich environments where space is at a premium
