CS VIC

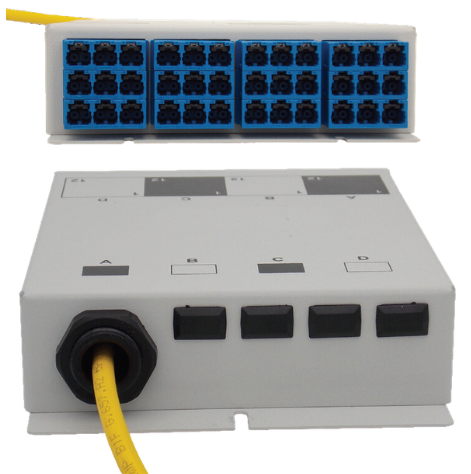

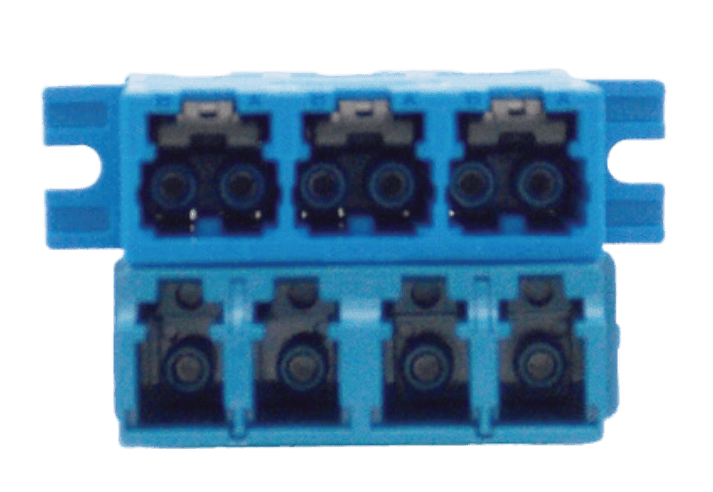

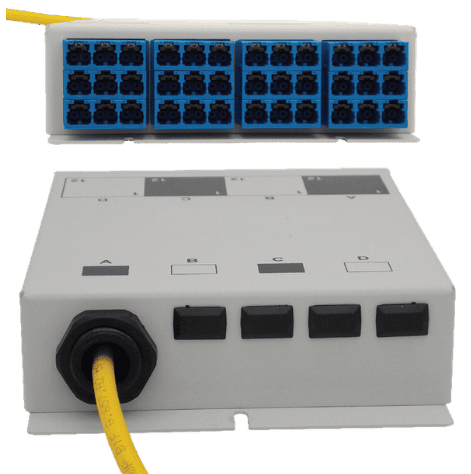

As demand for high-density fiber solutions grows, the CS VIC delivers a versatile, space-optimizing interconnect for wall-mount, cable-tray, or rack-mount applications. Designed for use with 1.6mm CS jumpers, it offers exceptional density without sacrificing accessibility. Front-side push-pull tabs provide easy access to all 36 fiber pairs, while the rear supports pre-loaded trunk cables or MTP adapters for flexible deployment. For a full overview, view the CS VIC Summary, or request a quote to discuss your application needs.
Applications
-
Rack-mount, Wall-mount, Zero U Vertical-Mount
-
Data Centers, Central Offices, Mobile Edge Computing
-
High-density cross-connects
-
Passive Optical Networks (PONs), Fiber to the Office (FTTO)
Features
-
36 CS front side ports, totaling 72f
-
Pre-wired with your choice of rear MPO adapters or low-profile backbone cable
-
Small footprint for easy installation in a multitude of settings
-
QR Code provides access to port identification templates that can be stored on your network
-
RoHS, REACH-compliant. CPR-rated cables now available upon request.
Specifications
| CONNECTOR | IL MAX (DB) | RL MAX (DB) |
|---|---|---|
| SM CS | 0.25 | -55 |
| MM CS | 0.25 | -30 |
| SM MTP (M) | 0.35 | -60 |
| MM MTP (M) | 0.35 | -30 |
| CABLE STYLE | OD | TENSILE | BEND RADIUS |
|---|---|---|---|
| 72f Collapsible Ribbon OFNP SM | 6.2 mm | 150 lbf | 1.95" |
| 72f 2mm Micro Breakout OFNP SM | 8.4 mm | 150 lbf | 3.31" |
| 72f 2mm Micro Breakout OFNP OM4 | 8.4 mm | 150 lbf | 3.31" |
Fiber Port Assignments
| COLUMN 1 | COLUMN 2 | |||||
|---|---|---|---|---|---|---|
| Ribbon 1/MTP A (Black) | CS 1: A-Blue, B-Orange | CS 2: A-Green, B-Brown | CS 3: A-Slate, B-White | CS 4: A-Red, B-Black | CS 5: A-Yellow, B-Violet | CS 6: A-Rose, B-Aqua |
| Ribbon 2/MTP B (Blue) | CS 1: A-Blue, B-Orange | CS 2: A-Green, B-Brown | CS 3: A-Slate, B-White | CS 4: A-Red, B-Black | CS 5: A-Yellow, B-Violet | CS 6: A-Rose, B-Aqua |
| Ribbon 3/MTP C (Black) | CS 1: A-Blue, B-Orange | CS 2: A-Green, B-Brown | CS 3: A-Slate, B-White | CS 4: A-Red, B-Black | CS 5: A-Yellow, B-Violet | CS 6: A-Rose, B-Aqua |
| COLUMN 3 | COLUMN 4 | |||||
|---|---|---|---|---|---|---|
| Ribbon 1/MTP D (Blue) | CS 1: A-Blue, B-Orange | CS 2: A-Green, B-Brown | CS 3: A-Slate, B-White | CS 4: A-Red, B-Black | CS 5: A-Yellow, B-Violet | CS 6: A-Rose, B-Aqua |
| Ribbon 2/MTP E (Black) | CS 1: A-Blue, B-Orange | CS 2: A-Green, B-Brown | CS 3: A-Slate, B-White | CS 4: A-Red, B-Black | CS 5: A-Yellow, B-Violet | CS 6: A-Rose, B-Aqua |
| Ribbon 3/MTP F (Blue) | CS 1: A-Blue, B-Orange | CS 2: A-Green, B-Brown | CS 3: A-Slate, B-White | CS 4: A-Red, B-Black | CS 5: A-Yellow, B-Violet | CS 6: A-Rose, B-Aqua |
