1RU & 2RU Fiber Splice Trays
1RU SPLICE TRAY
2RU SPLICE TRAY
Choosing the Right Fiber Splice Tray
Selecting the appropriate splice tray depends on the fiber density of the network, available rack space and anticipated capacity requirements. The 1RU tray provides a compact option for space-conscious installations, while the 2RU tray offers additional capacity for larger or expanding fiber networks.

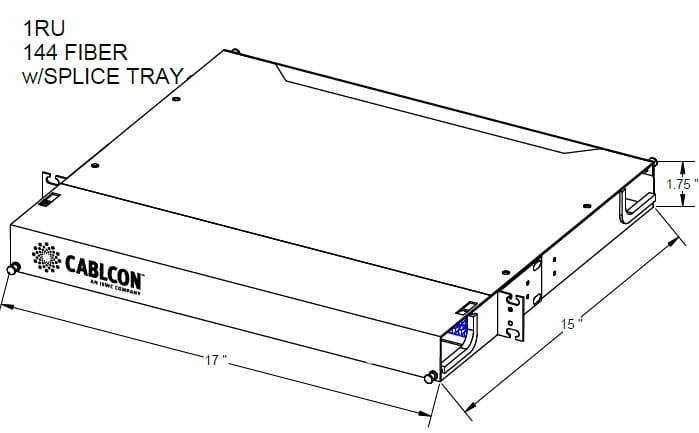

1RU SPLICE TRAY
The 1RU fiber splice tray fits within a single rack unit and provides efficient splice management where rack space is limited.
- 144-port LC configuration
- 216-port CS configuration
- 288-port SN or MDC configuration
- Compact 1RU design
- Supports moderate fiber counts
- Maintains organized routing and splice management
- Suitable for installations where conserving rack space is a priority

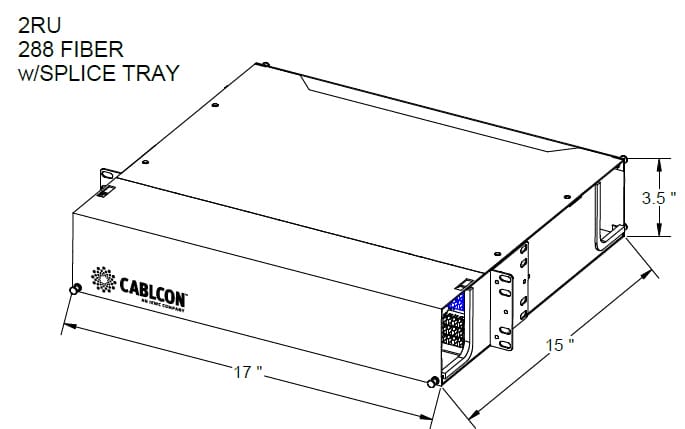

2RU SPLICE TRAY
The 2RU fiber splice tray provides twice the rack height and fiber capacity of the 1RU configuration, supporting higher-density splicing, routing and network growth.

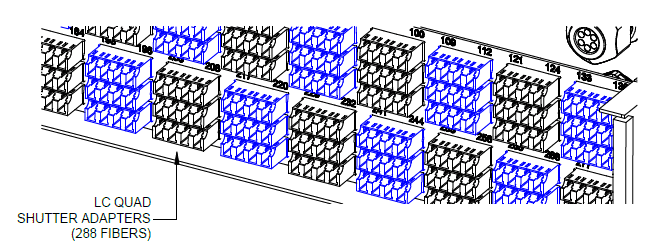

- 288-port LC configuration
- 432-port CS configuration
- 576-port SN or MDC configuration
- 2RU rack-mount design
- Increased space for fiber routing and organization
- Supports higher-capacity fiber requirements
- Provides scalability for growing networks
Specification | 1RU Splice Tray | 2RU Splice Tray |
|---|---|---|
Rack Height | 1RU / 1.75 inches | 2RU / 3.5 inches |
Width | 17 inches | 17 inches |
Depth | 15 inches | 15 inches |
LC Capacity | 144 ports | 288 ports |
CS Capacity | 216 ports | 432 ports |
SN or MDC Capacity | 288 ports | 576 ports |
Internal Splice Trays | One 144-fiber tray | Two 144-fiber trays |
Best Suited For | Space-conscious installations | Higher-density or expanding networks |
Fiber Management Features
Both configurations are designed to organize fiber splicing, routing and front-facing connectivity within a standard rack-mounted enclosure.
- Adapter configurations for LC, CS, SN and MDC connectivity
- Integrated cord grips
- Cable-tie mounting points
- Internal fiber splice-tray organization

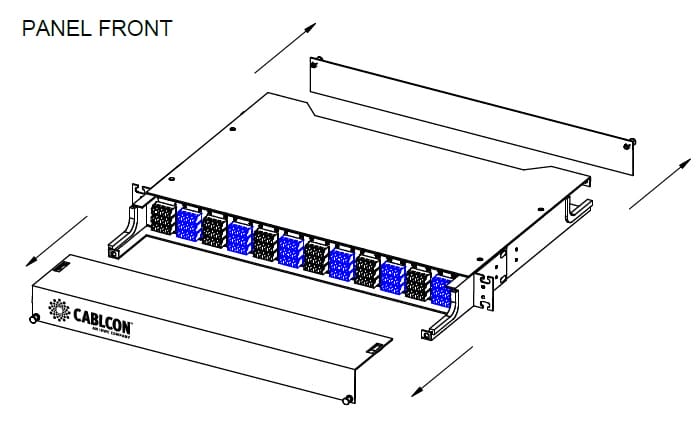

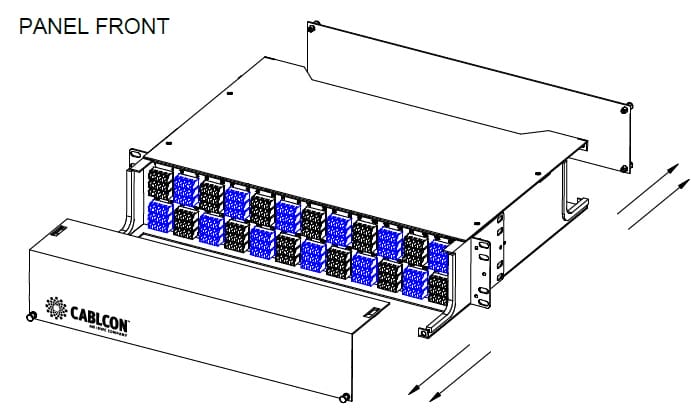

- Front-facing adapter access

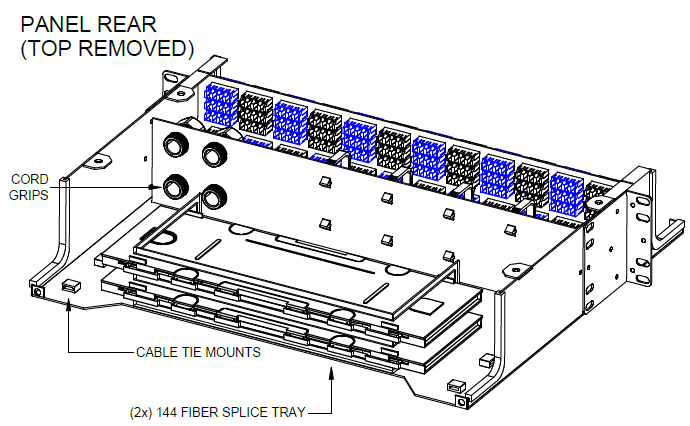

- Removable enclosure top for internal access
- Rack-mount construction
- Compact 17-inch-wide and 15-inch-deep footprint
Product Specifications
Find the Right Splice Tray for Your Network
Contact Cablcon to discuss fiber density, adapter configuration, rack-space and splice-management requirements for your application.
