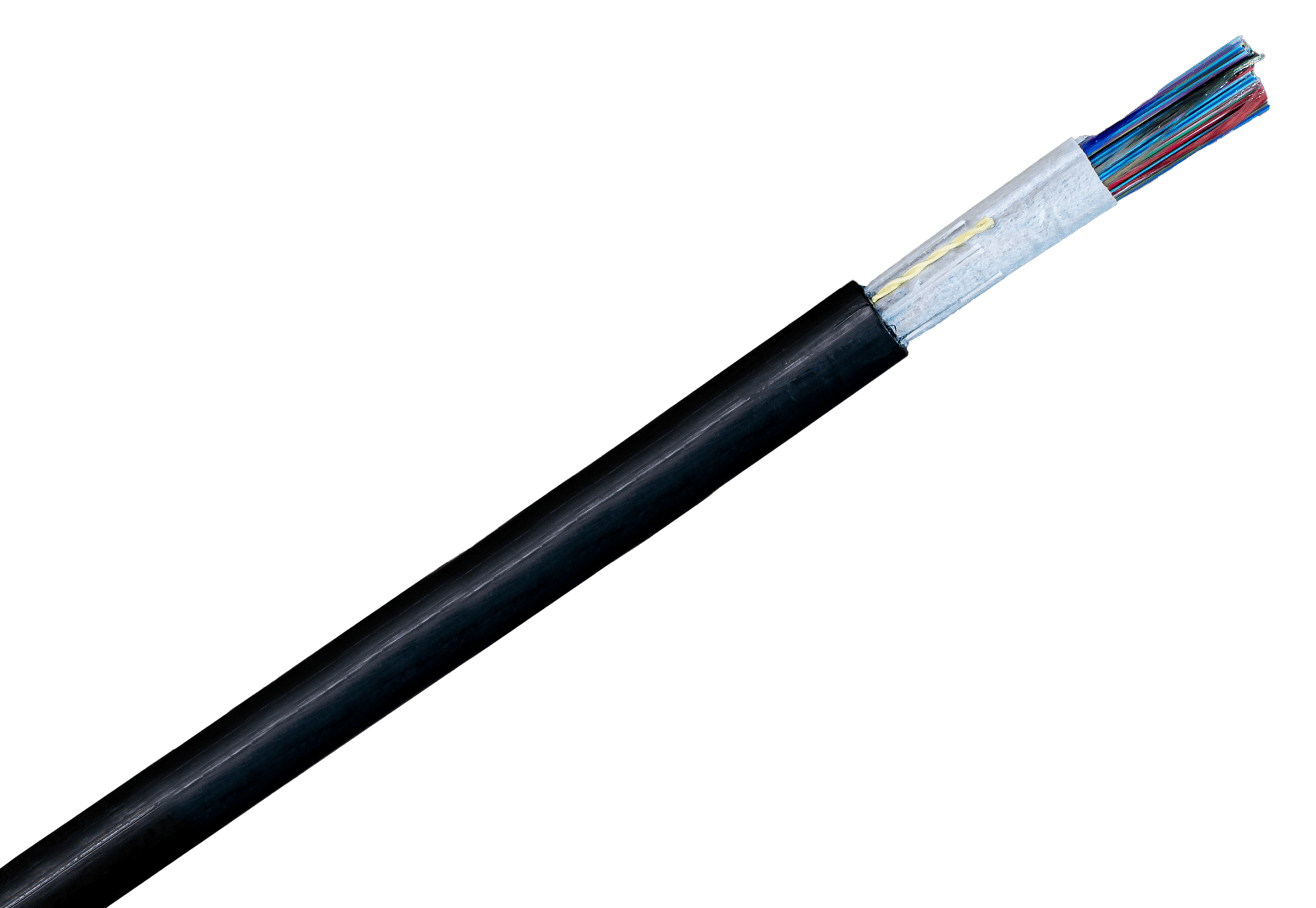

Microcable Collapsible Ribbon
Collapsible Ribbon Microcable delivers high-density fiber capacity in compact designs, available in dielectric or armored constructions and scalable from 144 to 1728 fibers for a wide range of deployment environments. Built with 250μm G.657.A1 fibers for strong bend performance and low attenuation, these cables are suited for space-constrained or harsh conditions, with Cablcon’s engineers available to support customized configurations. View the Collapsible Ribbon Microcable Summary here, or request a quote to discuss customization, performance needs, or installation support.
Applications:
- Telecommunications Networks: Ideal for backbone, distribution, and access networks where high fiber counts are required in limited space.
- Data Centers and Enterprise Networks: Suitable for high-density installations that demand efficient fiber management and easy routing.
- Aerial and Duct Installations: The small outer diameter allows for easy installation in tight ducts and aerial applications.
- Mass Fusion-Splice Microcable Family: Designed specifically for efficient and high-capacity installation allowing multiple fibers to be spliced simultaneously, enhancing installation speed and efficiency.
- Jetted or Blown Deployment: Cost effective method by reducing installation time and labor costs due to efficiency, reduced stress or risk of damage, and flexibility for future updates.
Technical Specifications:
- Fiber Type: 250μm G.657.A1 with low attenuation and high bend tolerance.
- Fiber Count: General Purpose Dielectric are 144, 288, 432, 576, 864 fibers. Dual Jacket / Single Armor are 144 to 1728 fibers.
- Operational Temperature Range: -40°C to +70°C, ensuring performance in extreme environments.
- Tensile Rating: General Purpose Dielectric: ≥ 1W (where W is the weight of the cable per km). Dual Jacket / Single Armor is 2.7 kN, General Purpose Dielectric is 8.3 mm to 14.7 mm, and Dual Jacket / Single Armor is 10.5 mm and 29.0 mm.
Performance Benefits:
- Performance Standards: General Purpose Dielectric: ICEA S-122-744. Dual Jacket / Single Armor: Telcordia GR-20, ICEA S-87-640.
- High Fiber Density: Supports up to 1728 fibers, allowing for scalable network designs with minimal space requirements.
- Excellent Bend Performance: G.657.A1 fibers allow for tight bends without compromising signal quality, ideal for constrained spaces.
- Durable Construction: The Dual Jacket / Single Armor version provides enhanced mechanical protection, suitable for installations in demanding environments.
- Reliable Across Temperatures: Capable of performing in a wide range of temperatures, ensuring year-round reliability.
- Dual Jacket / Single Armor: Version provides additional protection for underground or direct-burial installations.
Construction Features:
- Outer Diameter (OD): Varies by fiber count and configuration.
- Duct Compatibility: Typical minimum duct ID ranges from 10 mm to 18 mm for General Purpose Dielectric and from 10 mm to 29 mm for Dual Jacket / Single Armor.
- Flexible Deployment: Designed for both indoor and outdoor use, offering flexibility in network planning.
- Multi-fiber Ribbons: Collapsible ribbons facilitate easier splicing, reducing installation time and complexity.
- Dielectric Benefits: Lightweight easy installation, non-conductive, corrosion resistnace ideal for underground or conditions, and cost-effective.
- Armored Benefits: Physical protection, durability, longer lifespan, security.
Microcable
| Fiber Count | Cablcon Standard Part Number | OD (mm) | Typical Minimum Duct ID (mm) |
|---|---|---|---|
| 144 | 13-WI144-0404G | 8.3 | 10 |
| 288 | 13-WI288-0404G | 9.8 | 12 |
| 432 | 13-WI432-0404G | 11.2 | 14 |
| 576 | 13-WI576-0404G | 12.8 | 16 |
| 864 | 13-WI864-0404G | 14.7 | 18 |
Fiber type: 250μm G.657.A1, Operating Temp. Range (°C): -40 to +70, Tensile rating ≥ 1W, where W is weight of cable per km, Performance Standard: ICEA S-122-744
General Purpose Dielectric Collapsible Ribbon
| Cable Fiber Count | Cablcon Standard Part Number | OD (mm) |
|---|---|---|
| 144 | 13-WI144-0404G | 10.5 |
| 288 | 13-WI288-0404G | 12.0 |
| 432 | 13-WI432-0404G | 13.5 |
| 576 | 13-WI576-0404G | 15.0 |
| 864 | 13-WI864-0404G | 17.5 |
| 1152 | 13-WI1152-0404G | 18.5 |
| 1728 | 13-WI1728-0404G | 23.0 |
Fiber type: 250μm G.657.A1, Operating Temp. Range (°C): -40 to +70, Tensile rating = 2.7 kN, Performance Standard: Telcordia GR-20 & ICEA S-87-640
Dual Jacket / Single Armor Collapsible Ribbon
| Cable Fiber Count | Cablcon Standard Part Number | OD (mm) |
|---|---|---|
| 144 | 13-KI144-04W5 | 16.0 |
| 288 | 13-KI288-04W5 | 17.5 |
| 432 | 13-KI432-04W5 | 19.0 |
| 576 | 13-KI576-04W5 | 20.5 |
| 864 | 13-KI864-04W5 | 23.0 |
| 1152 | 13-KI1152-04W5 | 24.0 |
| 1728 | 13-KI1728-04W5 | 29.0 |
Fiber type: 250μm G.657.A1, Operating Temp. Range (°C): -40 to +70, Tensile rating = 2.7 kN, Performance Standard: Telcordia GR-20 & ICEA S-87-640
Why Choose Microcable Collapsible Ribbon Cable?
Microcable Collapsible Ribbon offers a compact, high-density solution with fiber counts up to 1728, making it ideal for data centers, conduits, and duct installations. Its collapsible ribbon design simplifies installation and maintenance, while G.657.A1 fibers provide excellent bend performance with minimal signal loss. Available in durable dual-jacket and armored options and built to GR-20 and ICEA standards, it delivers reliable performance even in harsh or outdoor conditions—making it a scalable, long-term choice for growing network infrastructures.
