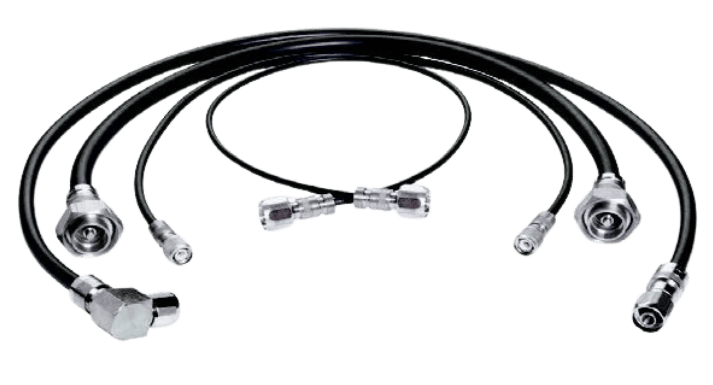

JMA Wireless RF Jumpers and Connectors
Cablcon, an ISO 9001 and TL 9000 Certified manufacturer of copper & fiber cables, manufactures RF jumpers with JMA Wireless brand connectors tested to your specifications.
Key Advantages of Cablcon-Manufactured Preformed Cables:
-
Quick turn manufactured in the United States at one of our automated ISO 9001 and TL 9000
-
Certified plants.
-
All cables built in semi-clean room controlled environment under a Process Control Plan.
-
Eliminates material waste and costly reworks in the field.
-
Removes “soft costs” on an installation by utilizing 100% tested preformed cables.
-
Cables can be packaged or “kitted” with site specific items.
-
Each assembly is serialized for traceability with results for PIM & VSWR labeled on assembly,
-
available online at rf.cablcon.com/client, and are archived at Cablcon for warranty purposes.
-
Point of Sale reports available to leverage corporate usage volume discounts.
Cablcon JMA Wireless preformed jumpers help reduce costly truck rolls, troubleshooting, tower climbs, and rework by delivering consistent, reliable performance.
-
PIM tested to your requirement (-160dBC @ 2x20W typical).
-
VSWR tested to your requirement (1.065/-30dB typical).
-
100% waterproof & temperature tested as defined by IP66-68 & Mil-Std-202.
-
Excellent pull strength with exceptional vibration and torsion resistance.
-
Custom test requirements for PIM, VSWR, IL available.
-
JMA Wireless Weather Protection System (WPS) available.
Cable Types
-
½” SuperFlex (CM, CMR and CMP Rated)
-
½” Annular (CM, CMR and CMP Rated)
-
¼” SuperFlex (CM and CMR Rated)
-
¼” Annular (CM and CMR Rated)

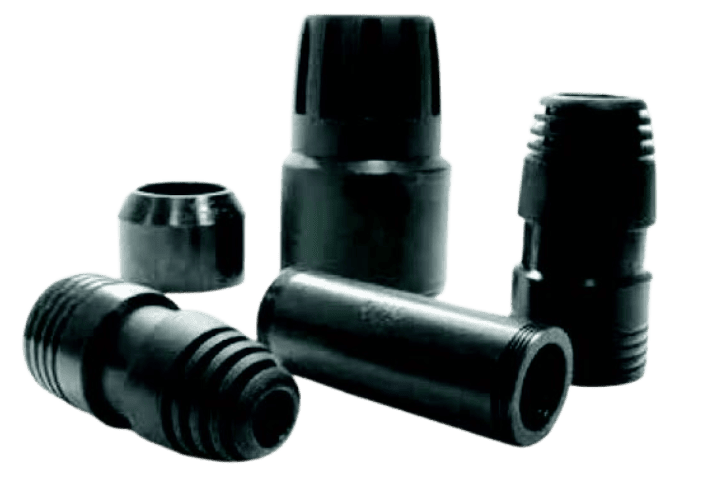

Connector Types
-
7/16 DIN Male or Female 180˚/90˚
-
N-Type Male or Female 180˚/90˚
-
4.1-9.5 Male 180˚/90˚
-
4.3-10 Male or Female 180˚/90˚
RF assemblies by Cablcon are manufactured in an automated, ISO 9001 and TL 9000 Certified plant environment with a dedicated staff certified and trained to meet your custom requirements.
